BUILDING MACHINERY AND BATCHING PLANTS
• Scraping Arms
• Turbo Mixers from low to high yield
• Modular Plants with Pan Mixer : semiautomatic and complete of aggregate drag line loads. With production from 300 to 400 litres of soft yield for batch.
• TORRE Plants : equipped by Turbo Mixer and electric board for manual, automatic and autonomous commands. With production from 350 to 1.500 litres of soft yield for batch. Our latest creation in the line TORRE is the model 2100 with planetary mixer which
improves the mixing for batches and for aggregates particularly hard. |
|
|
|
|
| |
|
| |
|
| |
| |
|
|
|
|

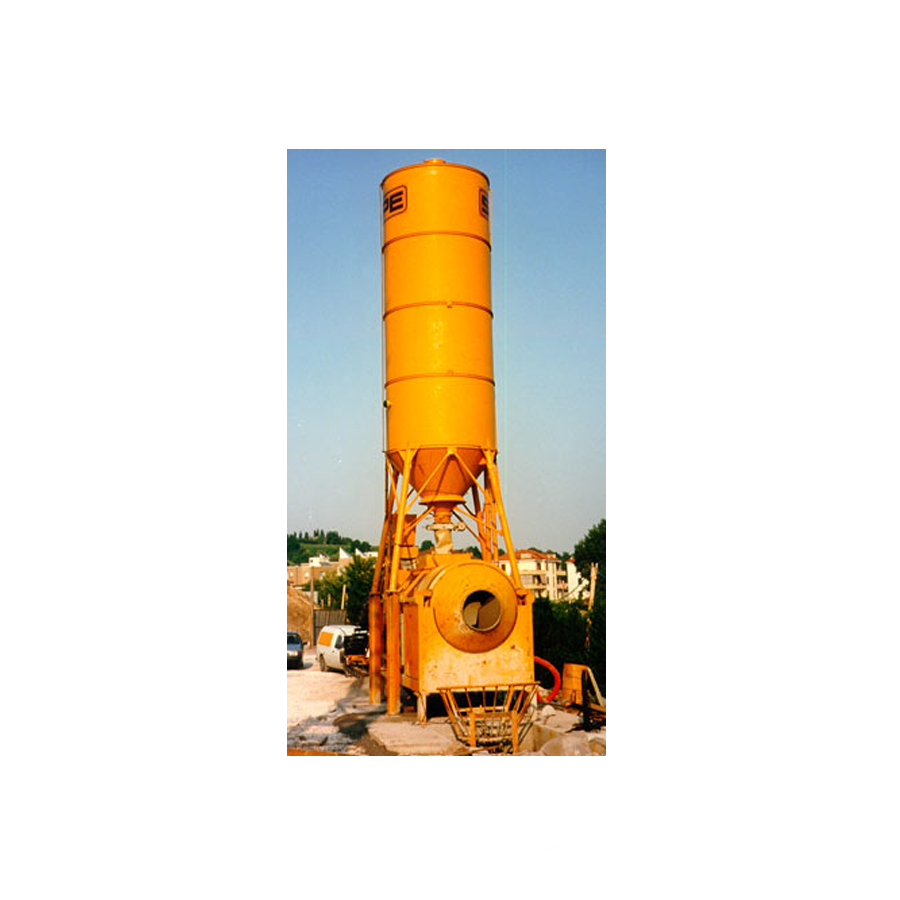

BETON MIXER
- Batching plant with reversing drum mixer; support frame for tower silo, n° 1 hydraulic rotation scraping arm for two aggregate loading, mixer discharge by reversing drum, switchboard for automatic, manual and autonomous control with two mod. pws. 4 set control displays for 12 recipes for 4 aggregate and 4 cement batching, cement
loading screw, water system with timed tank and pump, protection roof, cement minimum level acoustic / luminous signals (buzzer, leds), batch-counter, CE.
 |
|
|
|

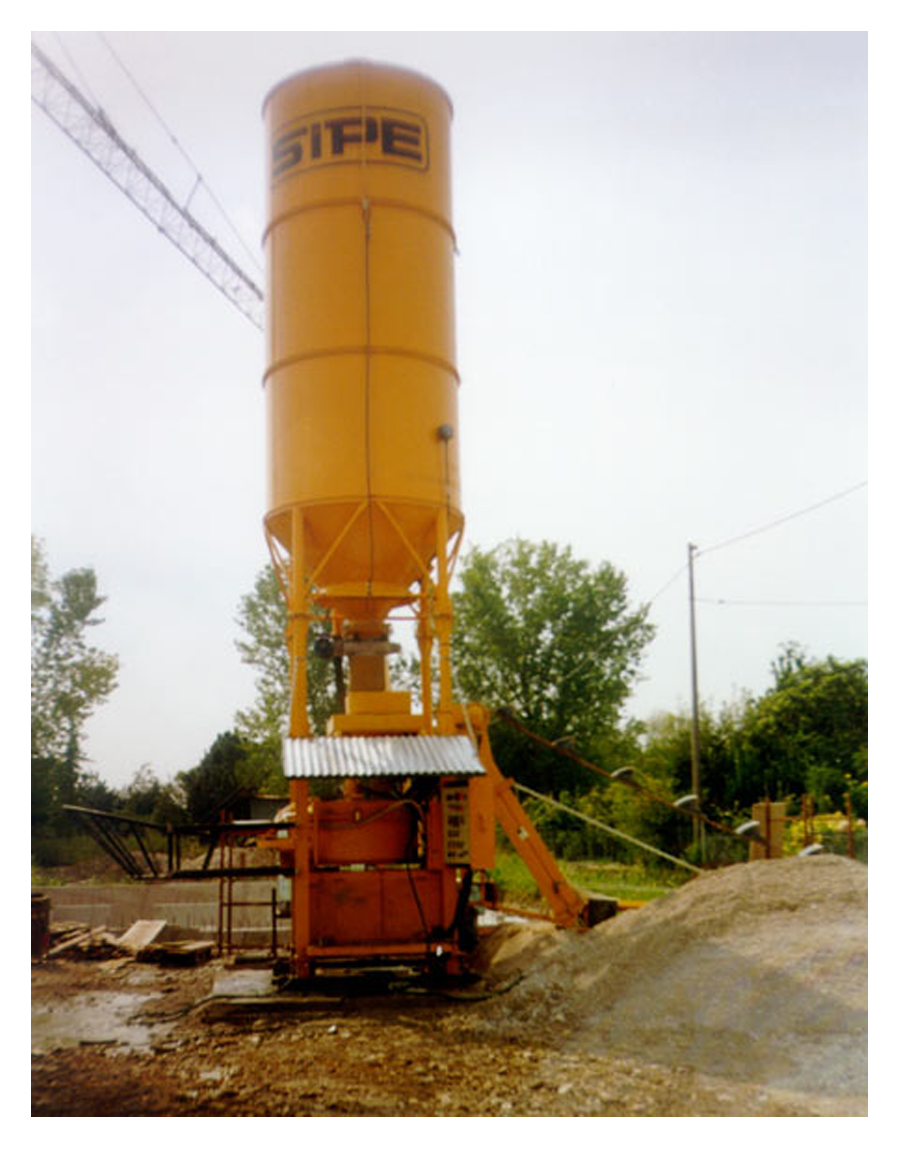

IDRO
- IDRO D SYSTEM (400 lt. yield)
Batching plant with forced planetary mixer and active diffuser;
hydraulically powered by a single hydraulic pump;
n°1 hydraulic rotation scraping arm for two aggregates;
mixer discharge with hydraulic opening;
switchboard for semi automatic and manual control for 2 aggregate batch;
water system with timed tank and pump, CE.
- HYDRO TOWER SYSTEM (400 lt. yield)
Batching plant with forced planetary mixer and active diffuser hydraulically powered by a single hydraulic pump;
support frame for tower silo 2000 diameter;
n°1 hydraulic rotation scraping rarm for two aggregates;
hydraulic mixer discharge;
switchboard for automatic, manual and autonomous control with two mod. pws. 4 set control displays for 12 mixes for 4 aggregate and 4 cement batch;
cement screw with batch and separate balance with electronic cell;
water system with timed tank and pump, protection roof, cement minimum level acoustic / luminous signals (buzzer, leds), batch-counter, CE.
|
|
|
|

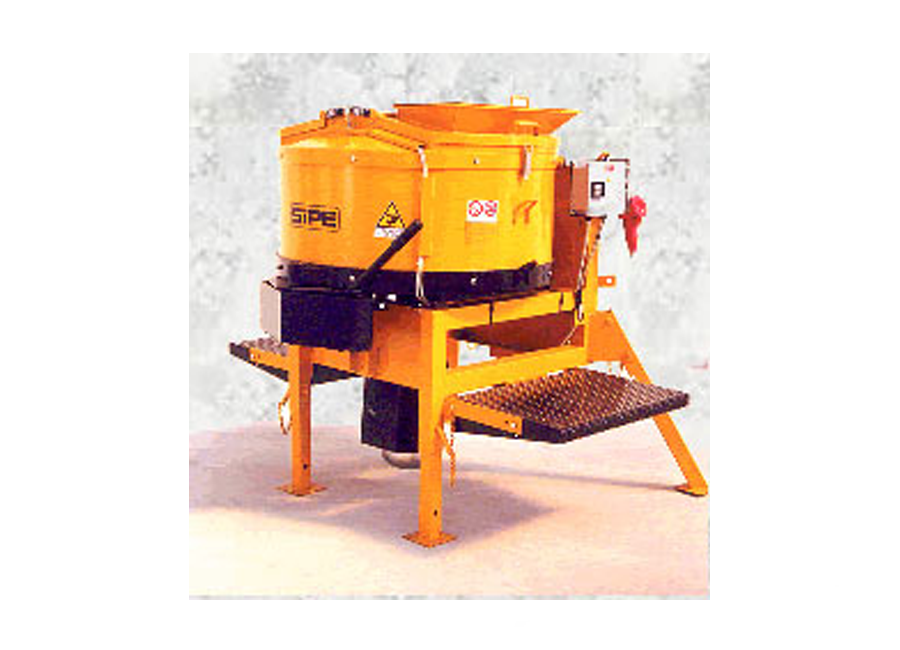

MIXER - Turbo Mixer
- Description of the basic machine equipment : Turbo Mixer, Supporting Frame, Control Board, CE
|
|
|
|

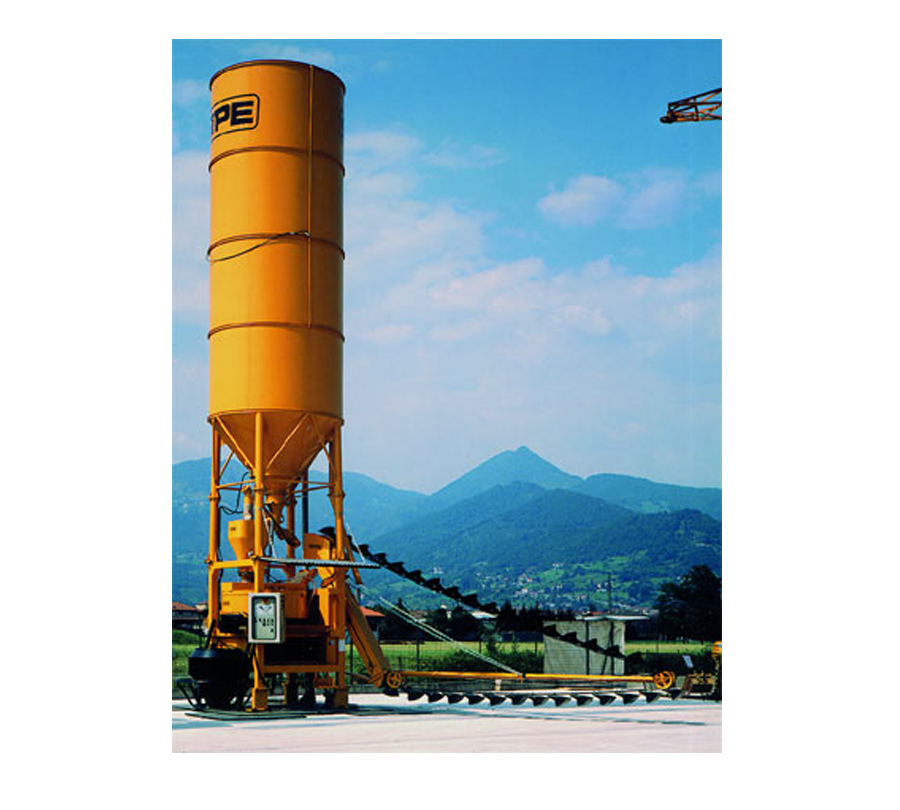

TORRE
- Batching plant with turbo mixer with side and bottom anti-wear sectors, support frame for tower silo, n°1 hydraulic rotation scraping arm for two aggregate loading, hydraulic mixer discharge, switchboard for automatic, manual and autonomous control with two mod. pws. 4 set control displays for 12 recipes for 4 aggregate and 4 cement batching, cement screw with cement batcher and separate balance with electronic cell, water system with timed tank and pump, protection roof, cement minimum level acoustic / luminous signals (buzzer and led), batch-counter, CE.
|
|
|
|

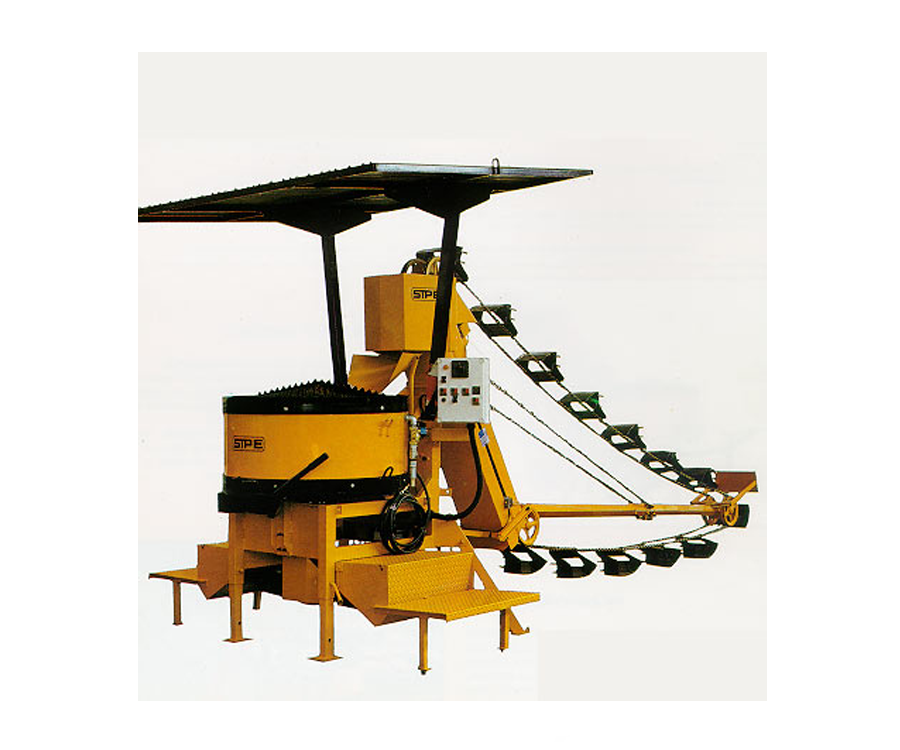

TTM
- Concrete batching plant with turbo mixer, n°1 minor series counterbalance rotation scraping arm for an aggregate, manual mixer discharge, switchboard for manual control, timed water system, C
|
|
|
|

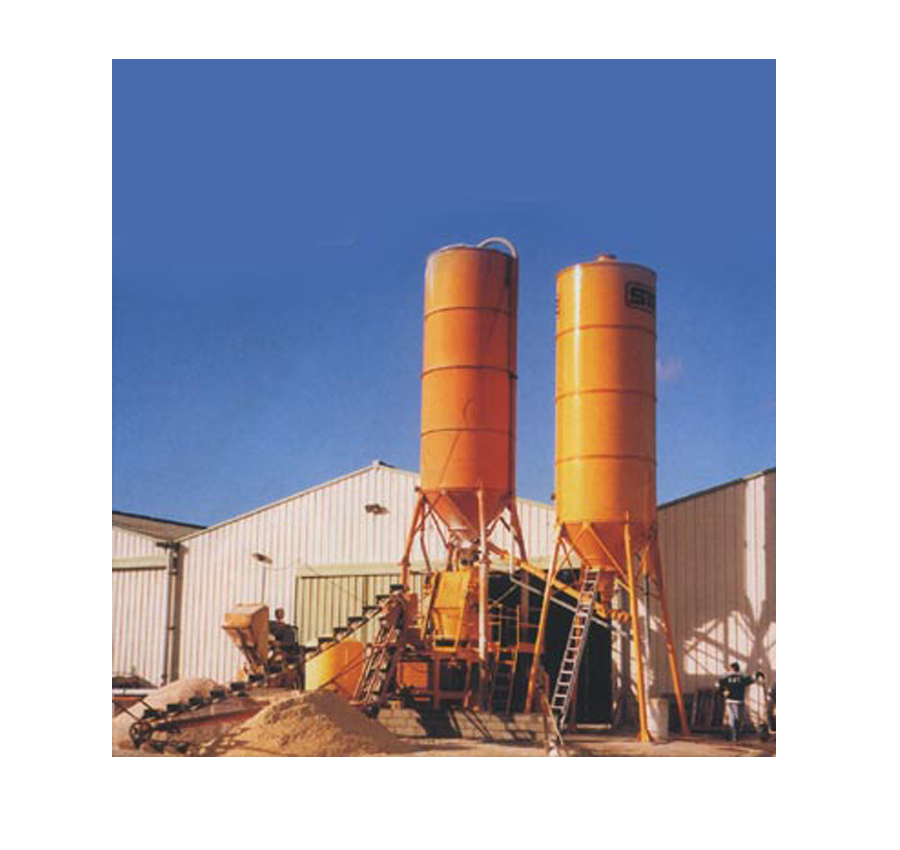

R MIXER
- Aggregate load scraping arm to suit size and capacity of production required.
- Aggregate loading by skip or batcher belt to suit size and capacity of production required.
- Mixer type and capacity to suit production required.
- Cement stocking and batching group including screws and safety systems required.
- Water group with litre counters or batching by weight, humidity control and batching of additives available.
- Control board display, which can be connected to PLC.
|
|
|
|

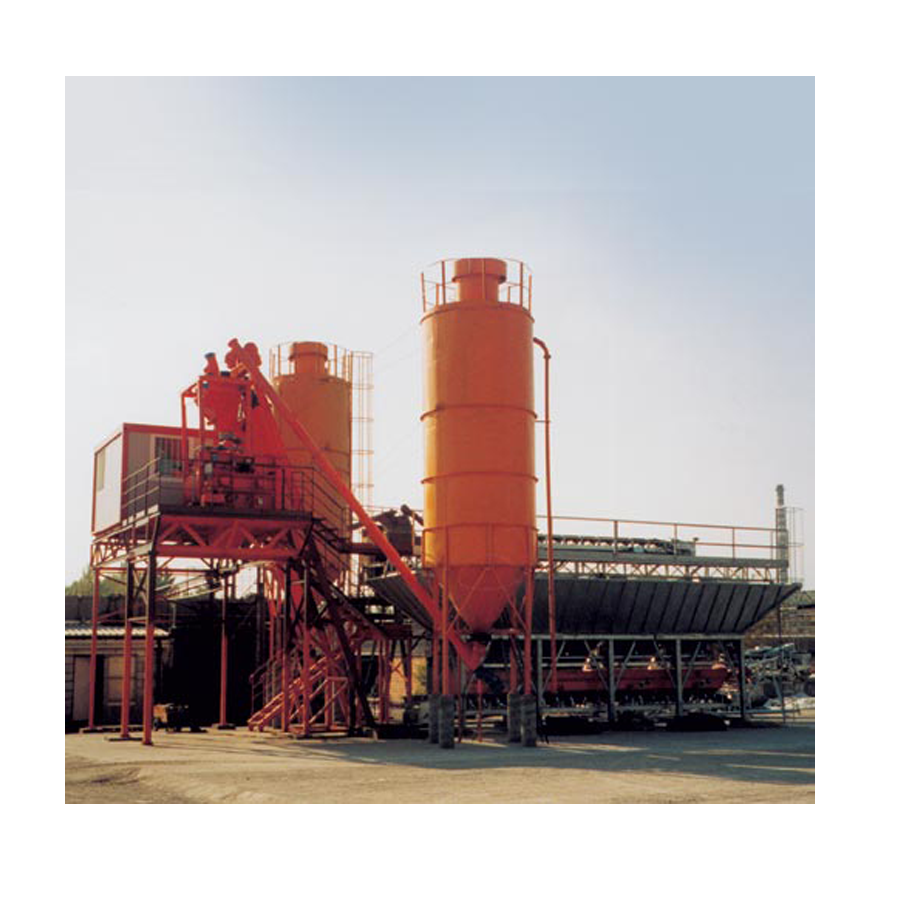

BV MIXER
- Aggregate stocking group with variable number and capacity horizontal hoppers, batching by small volumetric extractor belts, extracting belt to suit size and capacity of production required.
- Aggregate loading by skip or loading belt to suit size and capacity of production required
- Mixer to suit type and capacity of production required.
- Cement stocking and batching group including screws and necessary safety systems.
- Water group with litre counters or batching by weight, humidity control and batching of additives available.
- Control board display, which can be connected to PLC.
|
|
|
|

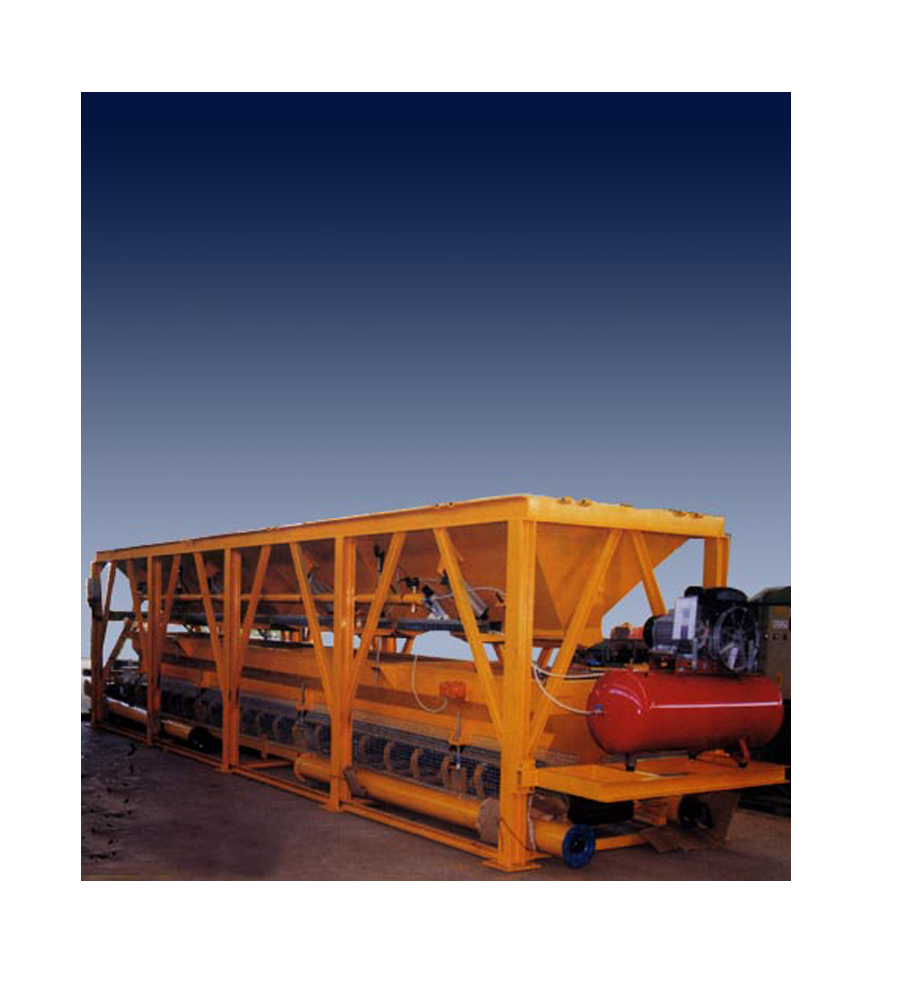

BW DRY
- Aggregate stocking group with variable number and capacity horizontal hoppers, 4 cell electronic batching by weight, compressor and air distribution to open hubs for unloading the hopper, extracting belt to suit size and capacity of production required.
- Aggregate loading by belt and unloading conveyor for truck mixers.
- Cement stocking and batching group including screws and safety systems to suit the production required.
- Water group with litre counters or batching by weight, humidity control and batching of additives available. Control board display, which can be connected to PLC and/or PC.
- Premixed loading and with by pass mixer.
|
|
|
|
BW MIXER
- Aggregate stocking group with variable number and capacity horizontal hoppers, 4 cell electronic batching by weight, compressor and air distribution to open hubs for unloading the hopper, extracting belt to suit size and capacity of production required.
- Aggregate loading by skip or loading belt to suit size and capacity of production required.
- Mixer to suit type and capacity of production required.
- Cement stocking and batching group including screws and necessary safety systems.
- Water group with litre counters or batching by weight, humidity control and batching of additives available.
- Control board display, which can be connected to PLC and/or PC.
- Plants for precast, production and concrete sale.
|
|
|
|

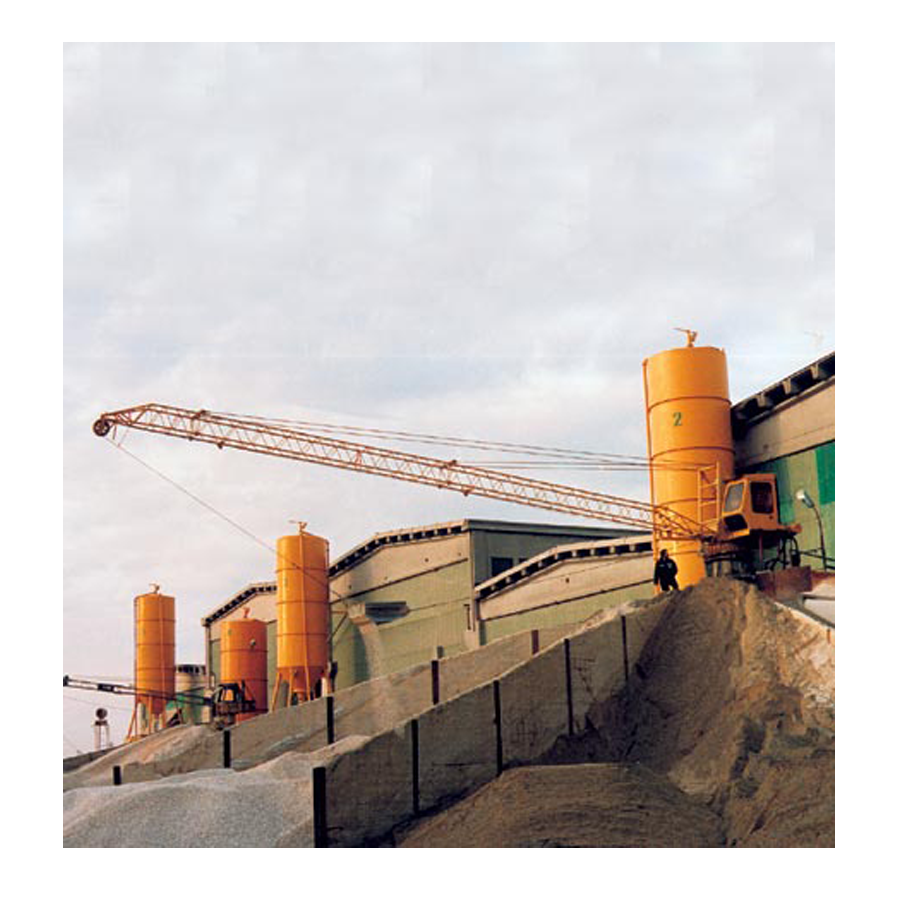

DRAG MIXER
- Aggregate loading by drag line with star or translating position, tower support structure with hubs that open pneumatically, arm length and bucket capacity to suit production required.
- Aggregate loading by skip or batcher belt to suit size and capacity of production required.
- Mixer type and capacity to suit production required.
- Cement stocking and batching group including screws and safety systems to suit production required.
- Water group with litre counters or batching by weight, humidity control and batching of additives available. Control board display, which can be connected to PLC and/or PC.
|
|
|
|

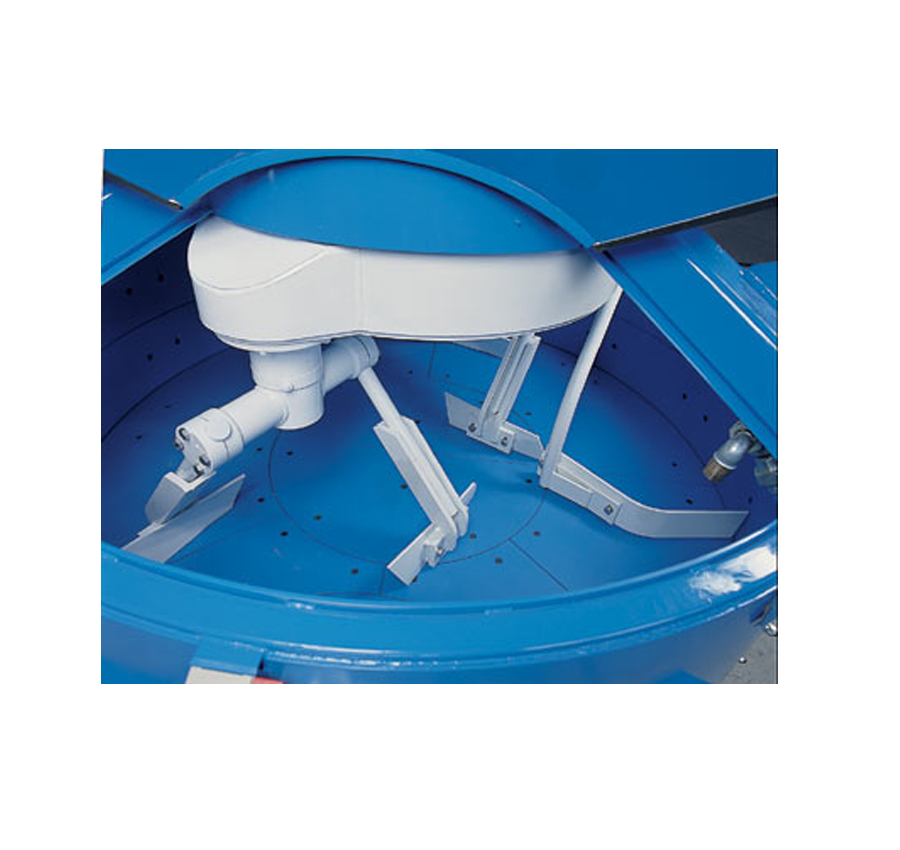

MIXER EPM
- The Mixer is the element of the batching plant which has evolved most during these few yers.
This evolution has been happening to suffer the job site requirements in producing concrete and to afford the wide range of manufactured articles. In order to grant the most quality and homogeneity of the batch , different kinds of mixers can be used , with a different technology and mixing procedures, such as: Turbo mixers, planetary mixers, twin shaft mixers amd counterflow mixers.
|
|
|
|

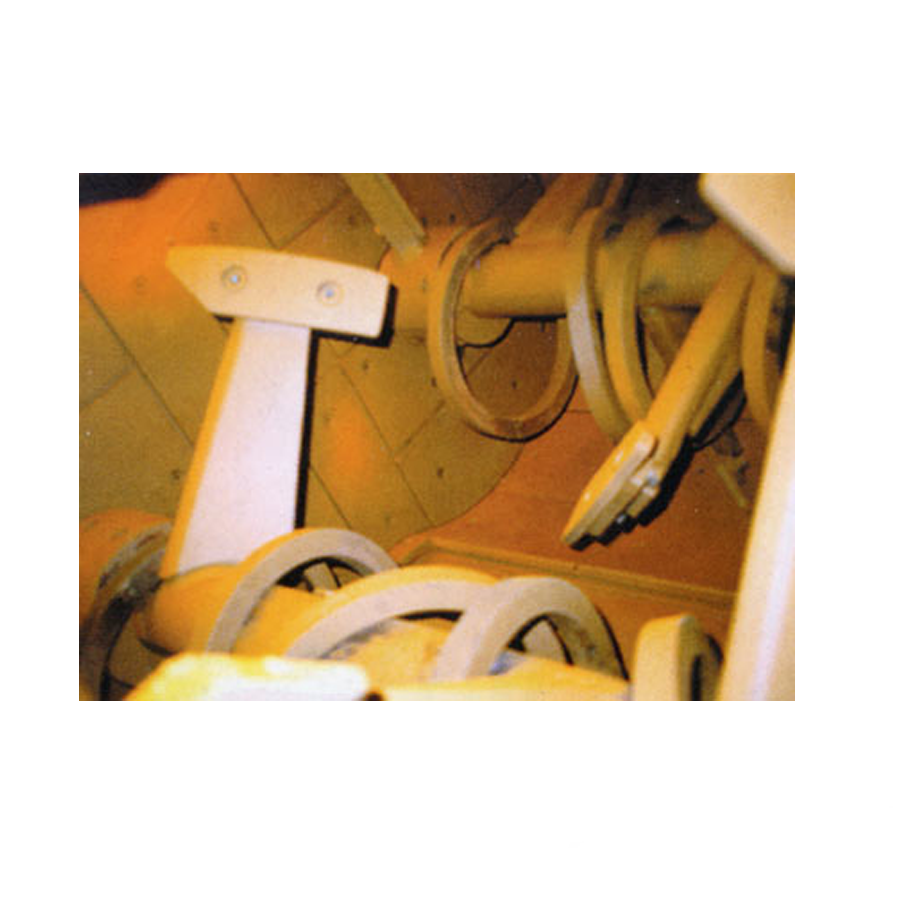

MIXER OS
- The Mixer is the element of the batching plant which has evolved most during these few yers.
This evolution has been happening to suffer the job site requirements in producing concrete and to afford the wide range of manufactured articles. In order to grant the most quality and homogeneity of the batch , different kinds of mixers can be used , with a different technology and mixing procedures, such as: Turbo mixers, planetary mixers, twin shaft mixers amd counterflow mixers.
|
|
|
|

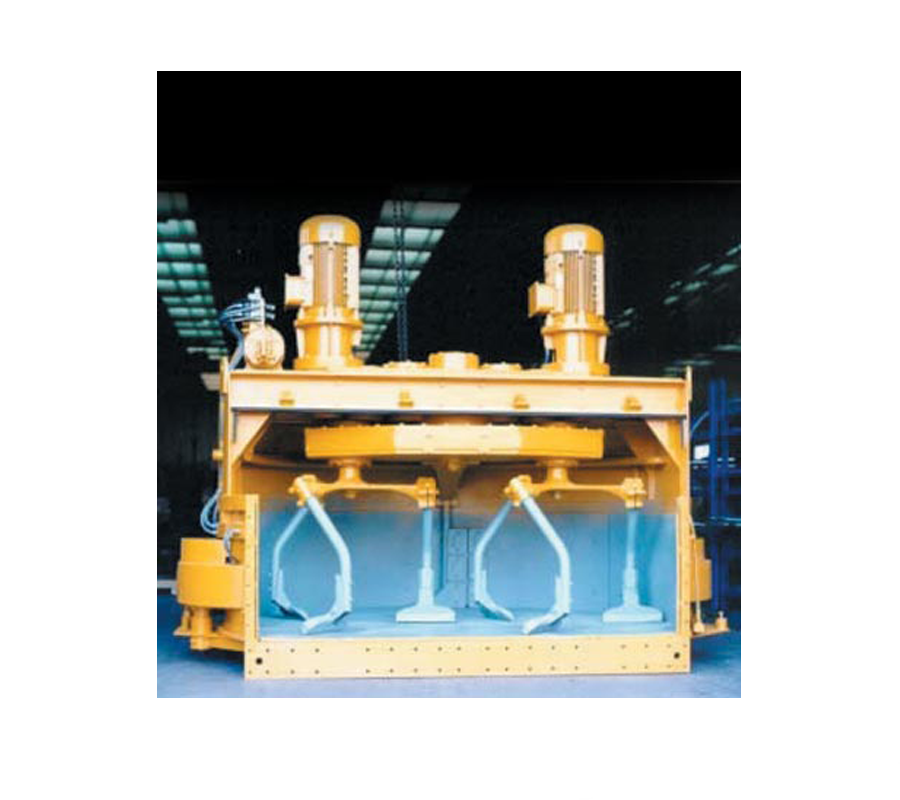

MIXER SP
- The Mixer is the element of the batching plant which has evolved most during these few yers.
This evolution has been happening to suffer the job site requirements in producing concrete and to afford the wide range of manufactured articles. In order to grant the most quality and homogeneity of the batch , different kinds of mixers can be used , with a different technology and mixing procedures, such as: Turbo mixers, planetary mixers, twin shaft mixers amd counterflow mixers.
|
|
|
|

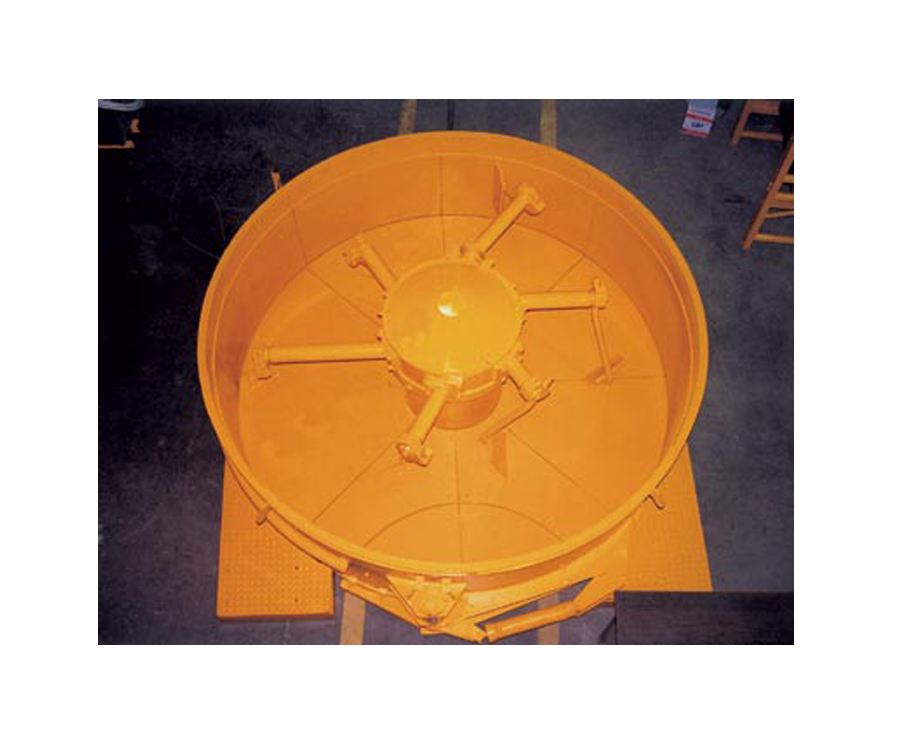

MIXER TURBO TTM
- The Mixer is the element of the batching plant which has evolved most during these few yers.
This evolution has been happening to suffer the job site requirements in producing concrete and to afford the wide range of manufactured articles. In order to grant the most quality and homogeneity of the batch , different kinds of mixers can be used , with a different technology and mixing procedures, such as: Turbo mixers, planetary mixers, twin shaft mixers amd counterflow mixers.
|
|
| |
| |
|
|
