Portable Test Equipment

Proceq, founded 60 years ago, manufactures high-quality portable testing instruments for the non-destructive testing of material properties of metal, concrete, rock, paper and composites. Proceq designs and manufactures its products in Switzerland and with its in-house Research and Development team continues to bring products to the market that set new standards for the industry. The Swiss company with subsidiaries in North and South America, United Kingdom, Russia, the Middle East, China and Singapore provides its international customers with excellent local support. Proceq is part of Tectus Group.

Particles sizes analysis
Corrossion detection
Concrete cover detection
Rebar detection

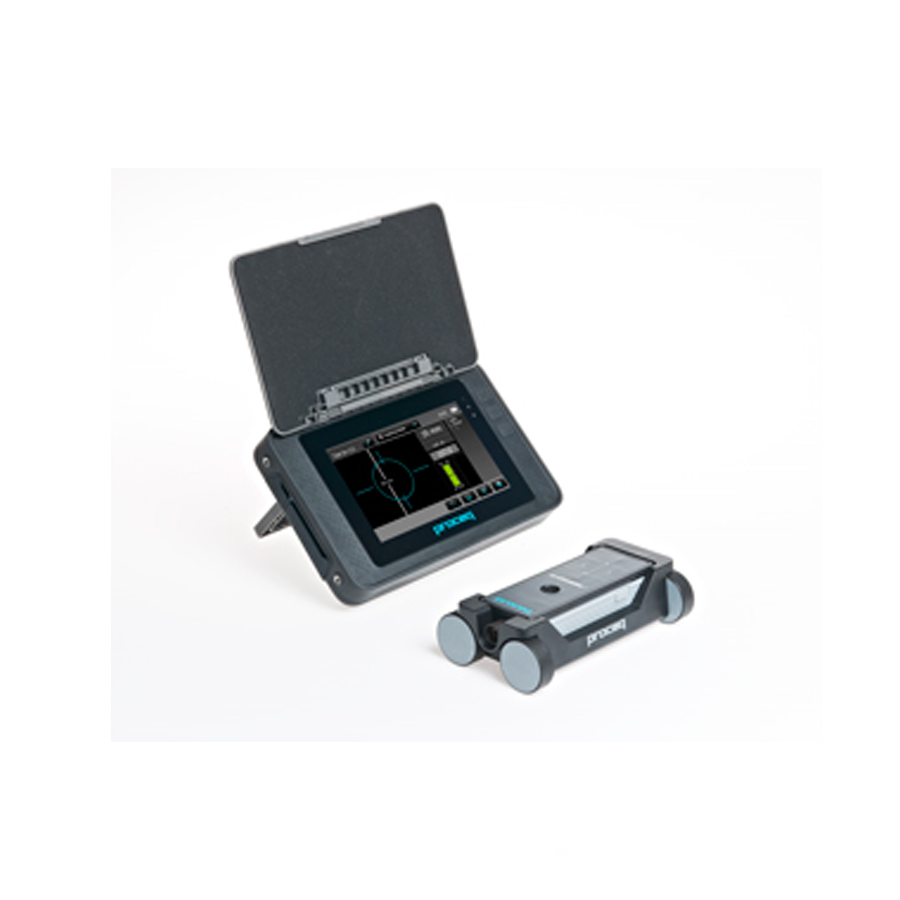

Profometer PM-600

  • Profometer PM-600 is an advanced cover meter for the precise and non destructive measurement of concrete cover and rebar diameters and the detection of rebar locations using the eddy current principle with pulse induction as the measuring method.
  • Based on the new generation Profometer Touchscreen unit, the instrument offers real time control over the measurement procedure directly on site. The high resolution color display allows best possible measuring and analysis of the statistical data for an entire working day (battery lifetime > 8h).

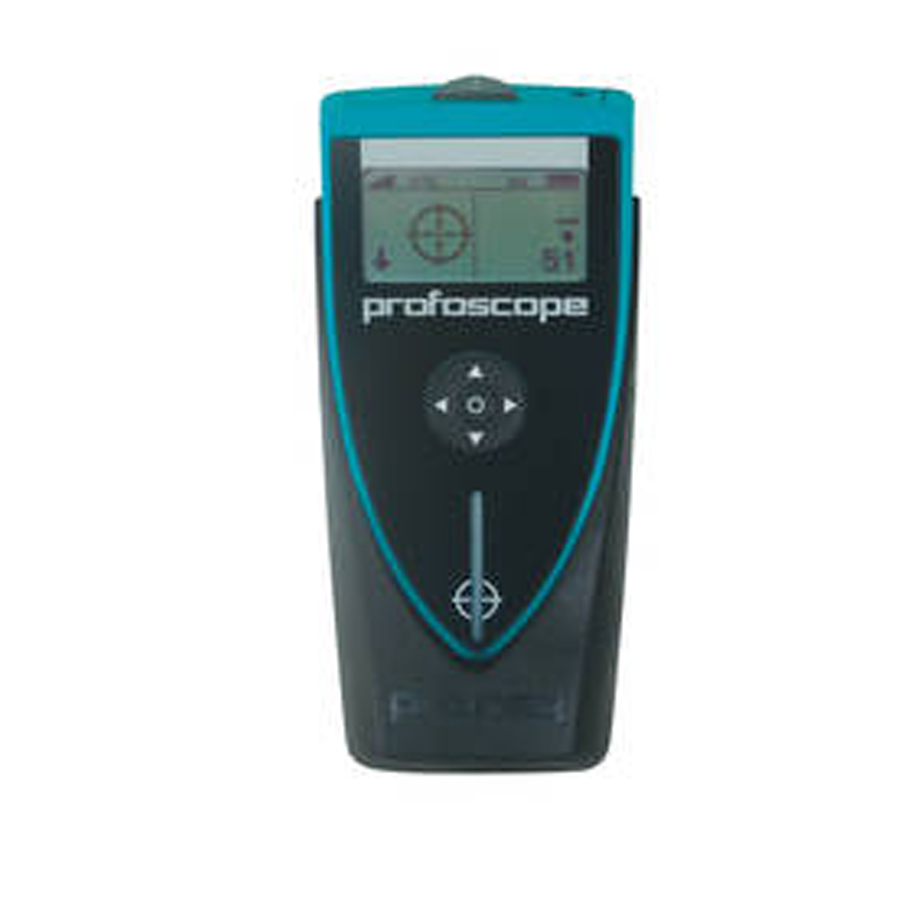

Profoscope

  • The Profoscope is a versatile, fully-integrated rebar detector and cover meter with a unique real-time rebar visualization allowing the user to actually "SEE" the location of the rebar beneath the concrete surface to a maximum depth of 180 mm. This is coupled with rebar-proximity indicators and optical and acoustical locating aids. Rebar diameter can also be estimated within the specified testing range. The Profoscope combines these unique features in a compact, light device that allows the user to operate this rebar detector with one hand making the task of locating rebars a simple and efficient process. In addition, Proceq’s rebar detector convinces through its intuitive user interface making rebar detection easy.

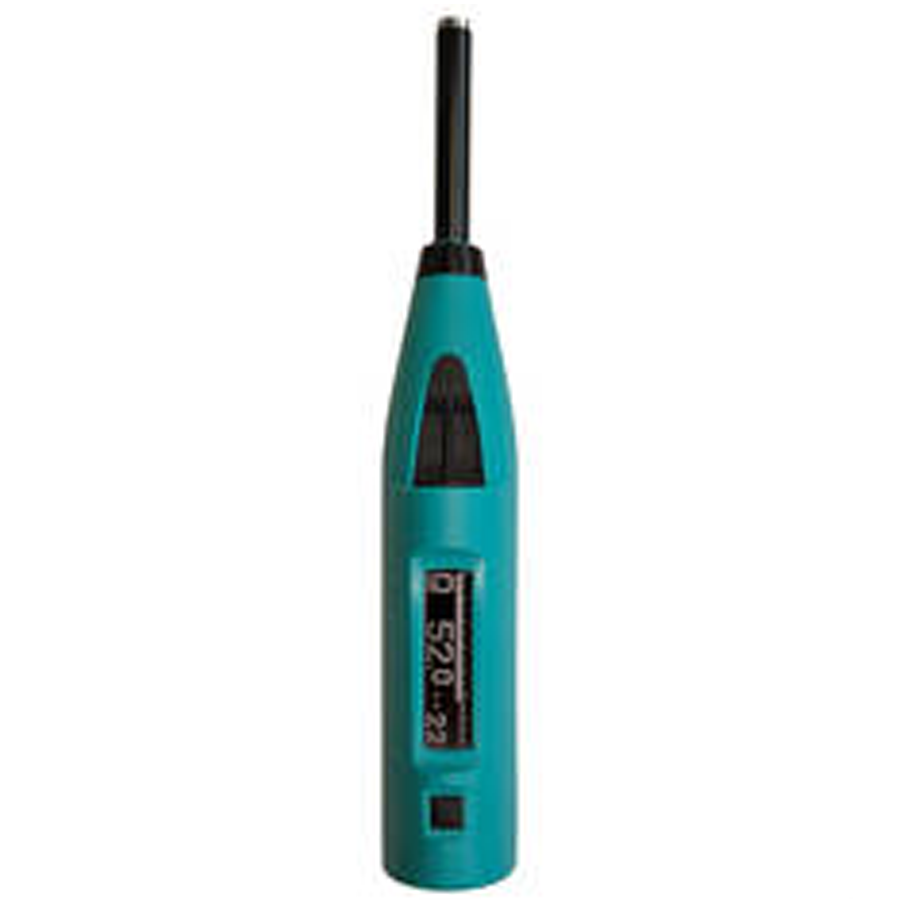

SilverSchmidt

  • The SilverSchmidt ST/PC is the first integrated concrete test hammer featuring true rebound value and unmatched repeatability. Two factors contribute to the improved performance of this concrete test hammer over its predecessors:
    • Velocity based detection of the rebound quotient
    • The lightweight hybrid design of the impact plunger is made from aerospace alloy, matched to the elastic properties of the concrete and equipped with a hardness steel cap



Original Schmidt

  • The quality of concrete is mainly judged by its compressive strength directly affecting the load-bearing capacity and durability of concrete structures. Proceq invented the Original Schmidt, the world’s first and now most widely used test hammer for analyzing the compressive strength of concrete properties.
  • The Original Schmidt will hit the concrete at a defined energy whereas its rebound is dependent on the hardness of the concrete and is measured by the instrument. The Original Schmidt is available in models with different impact energies, each test hammer designed for a specific test application, in order to meet the needs of the customers to investigate a wide range of material types and sizes, such as bridge decks, thin walls, cast stone components or small components.

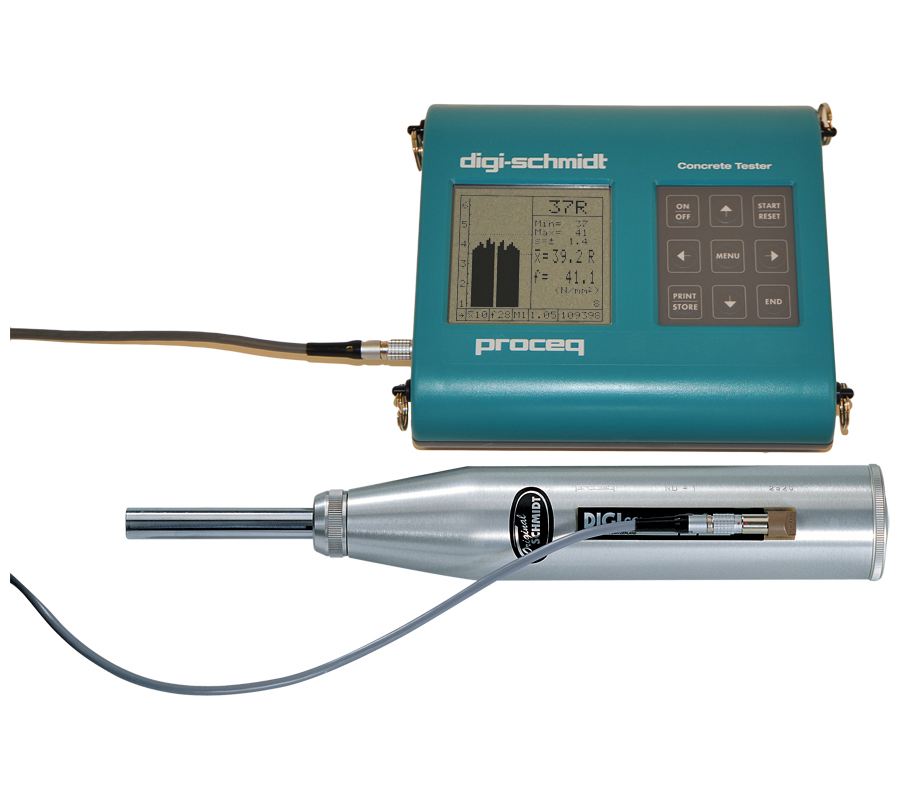

DigiSchmidt

  • The Schmidt Hammer Digi-Schmidt was developed for the non destructive measurement of the concrete compressive strength and controlling the uniform concrete quality.
  • Besides showing the basic settings on the included display unit, the Schmidt Hammer offers the transmission of the measured data to a standard printer or to a PC. This supersedes the time consuming business of note taking allowing the user to focus on the essential. The window based software ProVista allows downloading, presenting and editing of the measured values in a fast and easy way.

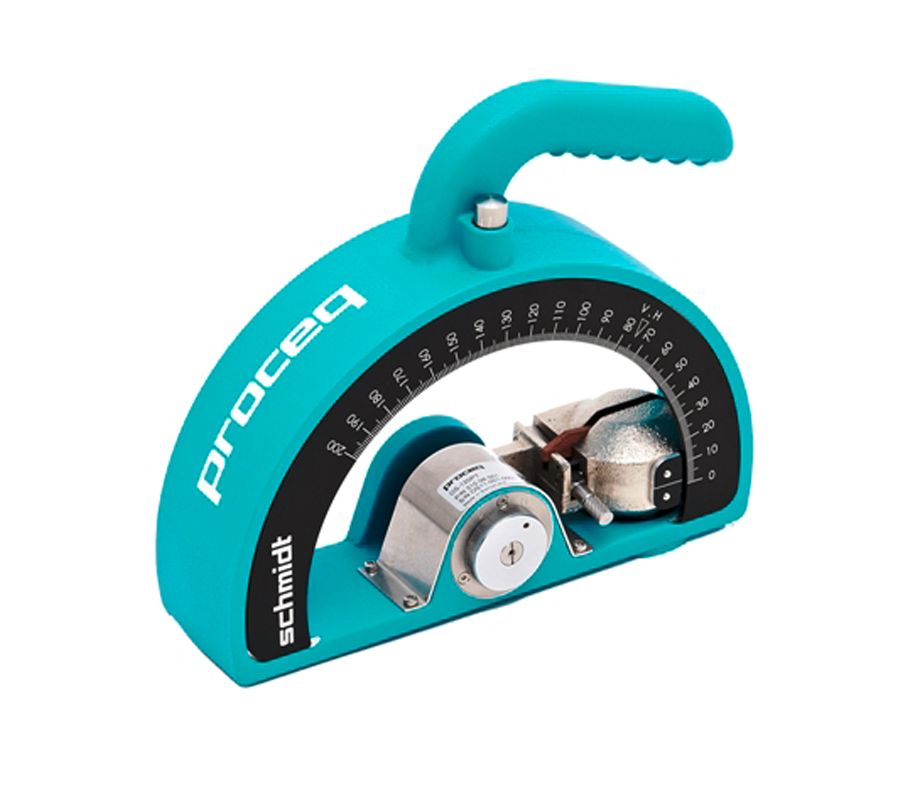

Schmidt OS-120

  • The Schmidt OS-120 Pendulum Hammers are designed to test on softer material such as light weight concrete, gypsum boards, fresh concrete and the mortar of joints in brickwork. Their unique design allows easy to handle measurements on vertical and horizontal surfaces.
  • Schmidt OS-120 is the only rebound hammer worldwide working with the pendulum system, thus it must not be loaded on the test surface. The larger plunger surface on the Schmidt OS-120PT allows tests on soft concrete starting with a compressive strength of 1 MPa.

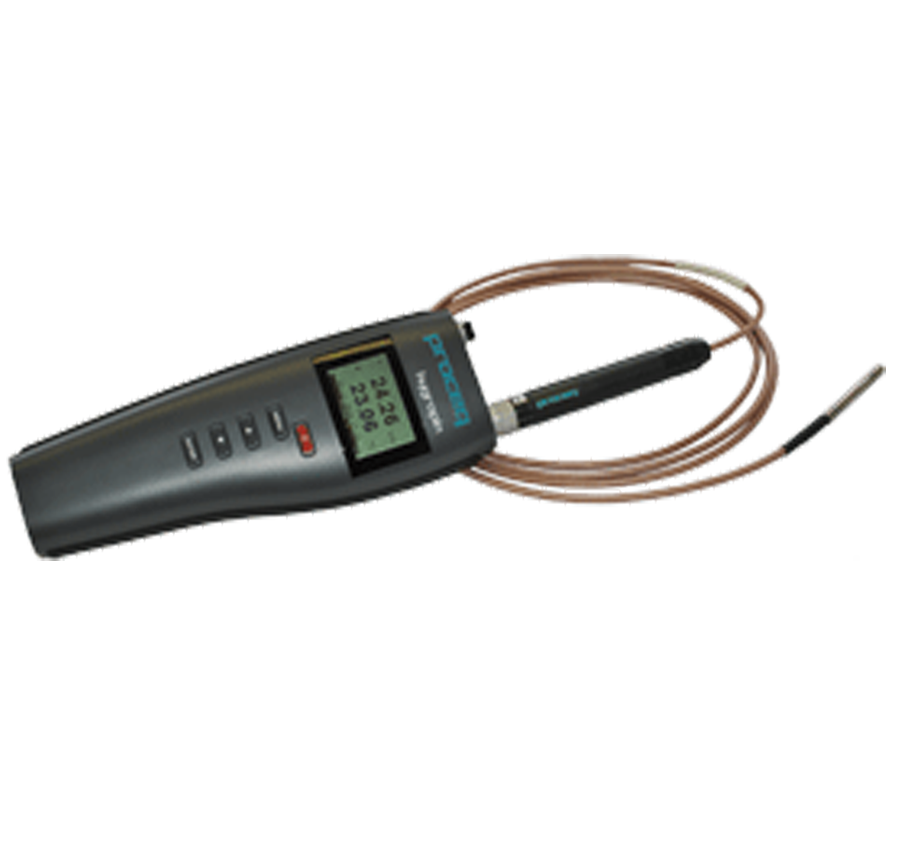

Hygropin

  • Excess moisture in concrete can be fatal to a floor covering installation. To prevent mildew and major damage, the flooring industry requires smart solutions to check surfaces for moisture prior to installing floor coverings or coatings. The Hygropin moisture meter offers the perfect solution to identify and monitor moisture in concrete. Due to the small and fast sensor of the moisture meter, diagnosing moisture according to ASTM F2170-09 is quicker and easier than ever before. The relative humidity test requires placing a measuring sleeve at a specific depth. This can be done either by drilling a hole or by pre-installing cast holes in fresh concrete. This moisture meter provides the smallest available sensor on the market, minimizing damage to the surface and reducing the installation efforts immensely.

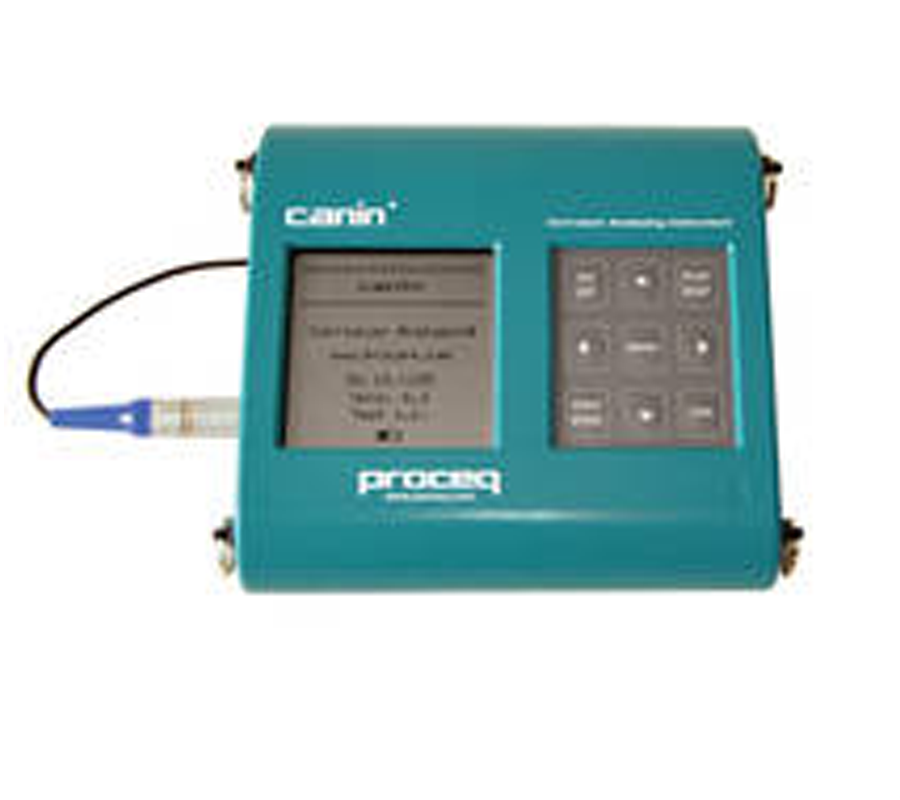

Canin+

  • Corrosion Analysis allows the contractor to limit the maintenance tasks on reinforced concrete to the areas where it is really required. The Canin+ is the fastest instrument for corrosion analysis, offering a practical, cost-effective approach to the investigation of reinforced concrete. Corrosion analysis with the Canin+ allows a rapid, comprehensive test of the site and provides a fast assessment of locations where corrosion is likely to take place. Corrosion analysis with the half-cell potential method: accurate field potential measurements aid in detecting active corrosion in rebars.

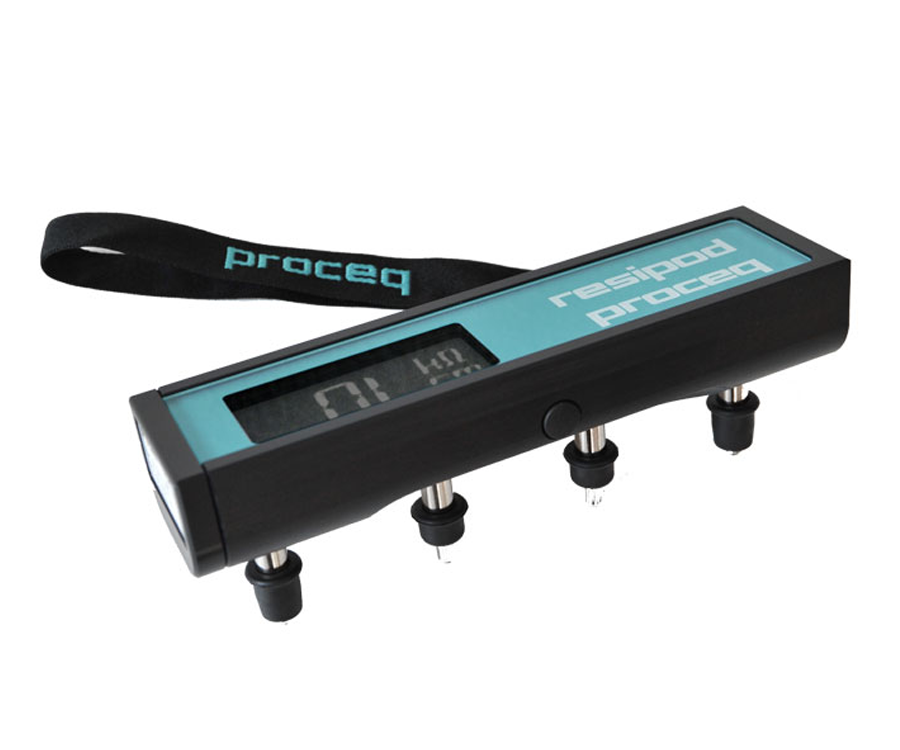

Resipod

  • Resipod is a fully integrated 4-point Wenner probe, designed to measure the electrical resistivity of concrete in a completely non-destructive test. It is the most accurate instrument available, extremely fast and stable and packaged in a robust, waterproof housing designed to operate in a demanding site environment. The Resipod is the successor of the classic CNS Farnell Resistivity Meter.
  • Surface resistivity measurement provides extremely useful information about the state of a concrete structure. Not only has it been proven to be directly linked to the likelihood of corrosion and the corrosion rate, recent studies have shown that there is a direct correlation between resistivity and chloride diffusion rate and even to determination of early compressive strength. This makes it one of the most versatile NDT methods for concrete.

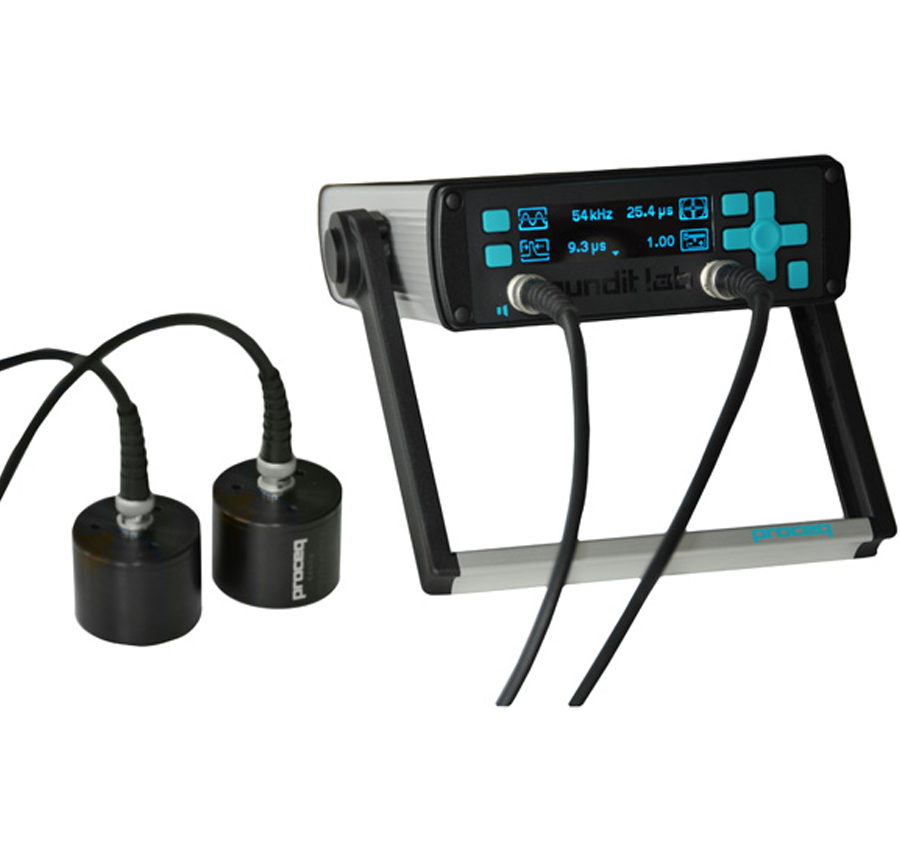

Pundit Lab

  • The Pundit Lab is an ultrasonic pulse velocity (UPV) test instrument which is used to examine the quality of concrete. It features online data acquisition, waveform analysis and full remote control of all transmission parameters. Along with the traditional transit time and pulse velocity measurement, the ultrasonic test equipment Pundit Lab offers path length measurement, perpendicular crack depth measurement and surface velocity measurement. Optimized pulse shaping gives greater transmission range at lower voltage levels. This, coupled with automated combination of the transmitter voltage and the receiver gain, ensures an optimum received signal level, guaranteeing accurate and stable measurements. An integrated waveform display allows manual triggering of the received waveform.

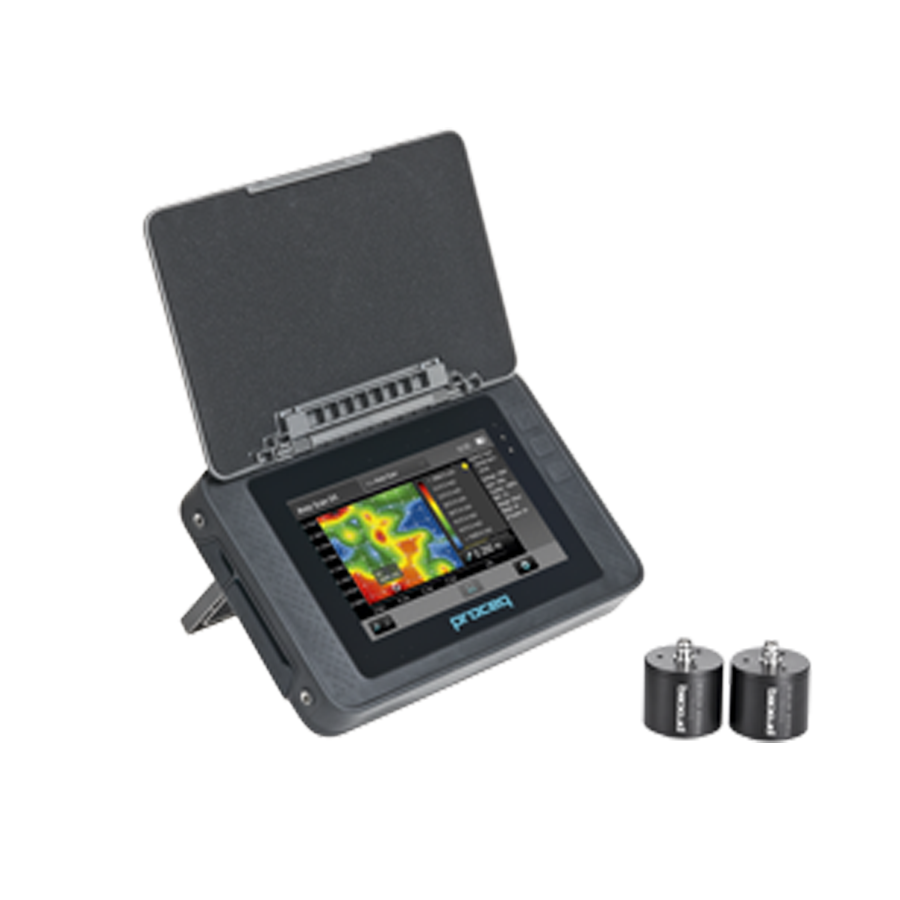

Pundit PL-200

  • The Pundit PL-200 is a best-in-class Ultrasonic pulse velocity (UPV) test instrument to examine the quality of concrete and other materials such as rock, wood and ceramics.
  • It provides an extended range of measurement modes and superior features for on-site testing: Assess the concrete uniformity using standard A-Scans, Line Scans and the new Area Scan functionality, estimate the compressive strength of concrete or measure the surface velocity and the depth of perpendicular cracks. The Data Logging measurement mode allows the automation of long term measurements.

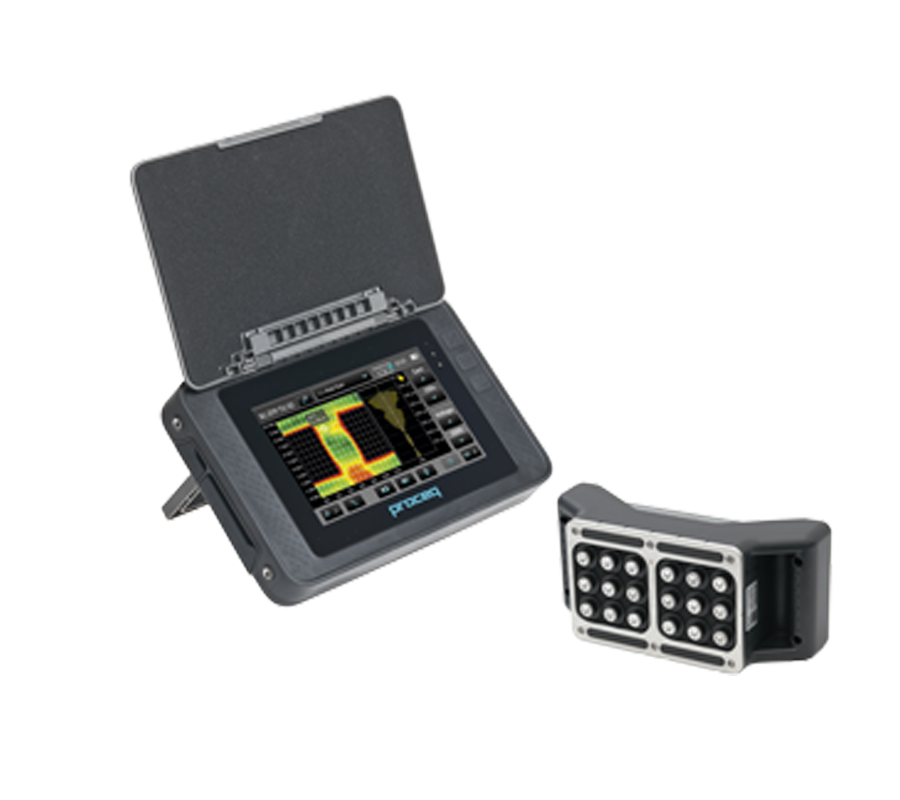

Pundit PL-200PE

  • The Pundit PL-200PE employs state-of-the-art pulse echo technology to extend the ultrasonic application to objects where access is restricted to a single side.
  • The measurement process is greatly assisted by Proceq innovations such as advanced echo tracking and automatic estimation of Pulse Velocity. The A-Scan Mode allows direct analysis of the raw signal and the real-time B-Scan Mode provides a cross-sectional view perpendicular to the scanning surface. The Area Scan enables slab thickness uniformity testing in grid patterns.

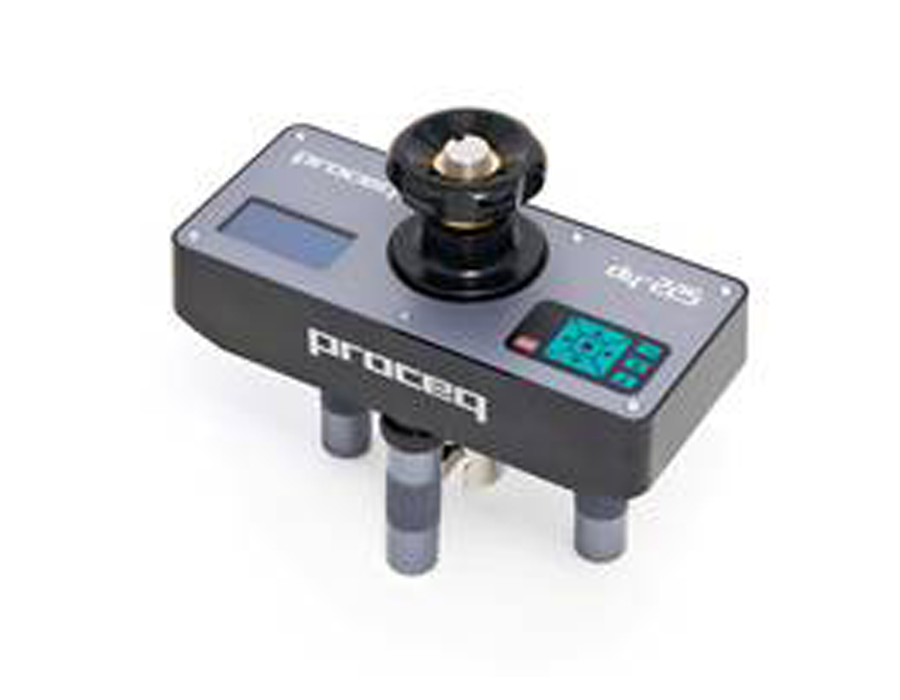

DY-2 Family

  • The Proceq DY-2 Family of automated pull-off testers covers the complete range of pull-off applications with unmatched ease of operation and a unique capability to store a complete record of the test.
  • Pull-off testing is one of the most widely used test methods in the construction industry. This is reflected in the huge number of standards dedicated to the method.

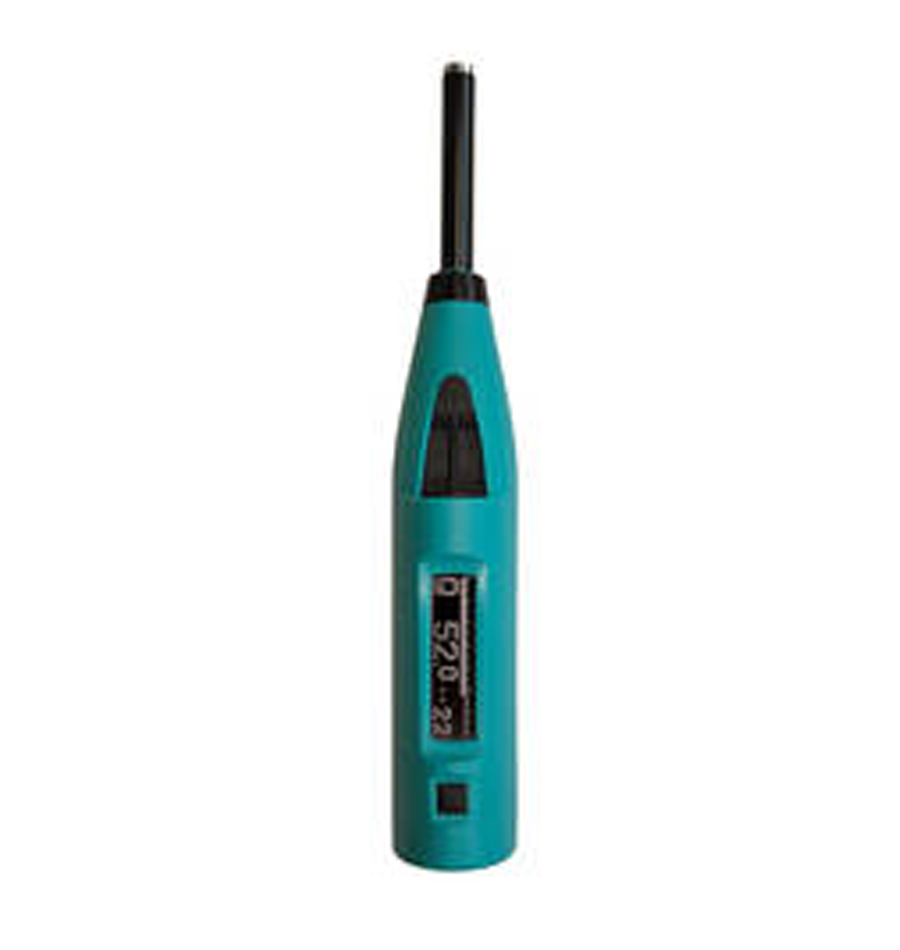

RockSchmidt

  • The RockSchmidt is the world's most advanced rebound hammer fully adapted specifically to the extremely varied rock testing applications.
  • The RockSchmidt incorporates statistical methods based on ASTM and ISRM recommendations and provides the user with the freedom to define his own statistical process for determining a rebound number.
  • Type N with standard impact energy ist most suited to field testing.
    Type L with low impact energy as specified by ASTM for testing cores.
