Endecotts laboratory test sieves and sample analysis equipment for laboratory, industrial and general sieving requirements.

Endecotts Laboratory Test Sieves and sample analysis equipment are used worldwide. Be it industrial sieve, laboratory test sieves, heavy engineering, mining or pharmaceuticals, Endecotts have the widest range of sieves available and are renown for its quality, durability and precision.

Endecotts are currently the only test sieve manufacturer to meet "BS410" standards and accredited with "Kitemark". This certification requires the company to commit itself to regular manufacturing quality audits and have sample products independently inspected and calibrated.

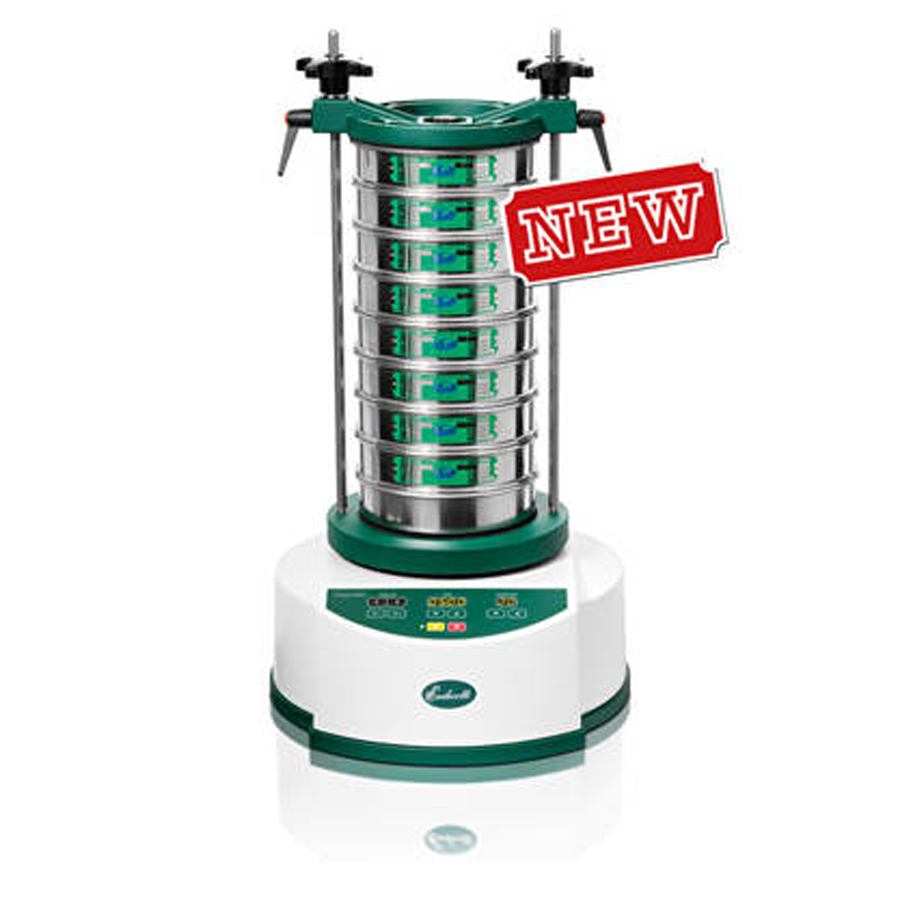

Sieve Shaker OCTAGON 200CL

  • Range: 20 µm to 125 mm
  • Drive / sieving motion: electromagnetic 3D
  • Amplitude: 0 - 3 mm digital setting in 0.1 mm steps "Closed Loop" amplitude control
  • Sieve diameter: 100 / 200 mm 8"

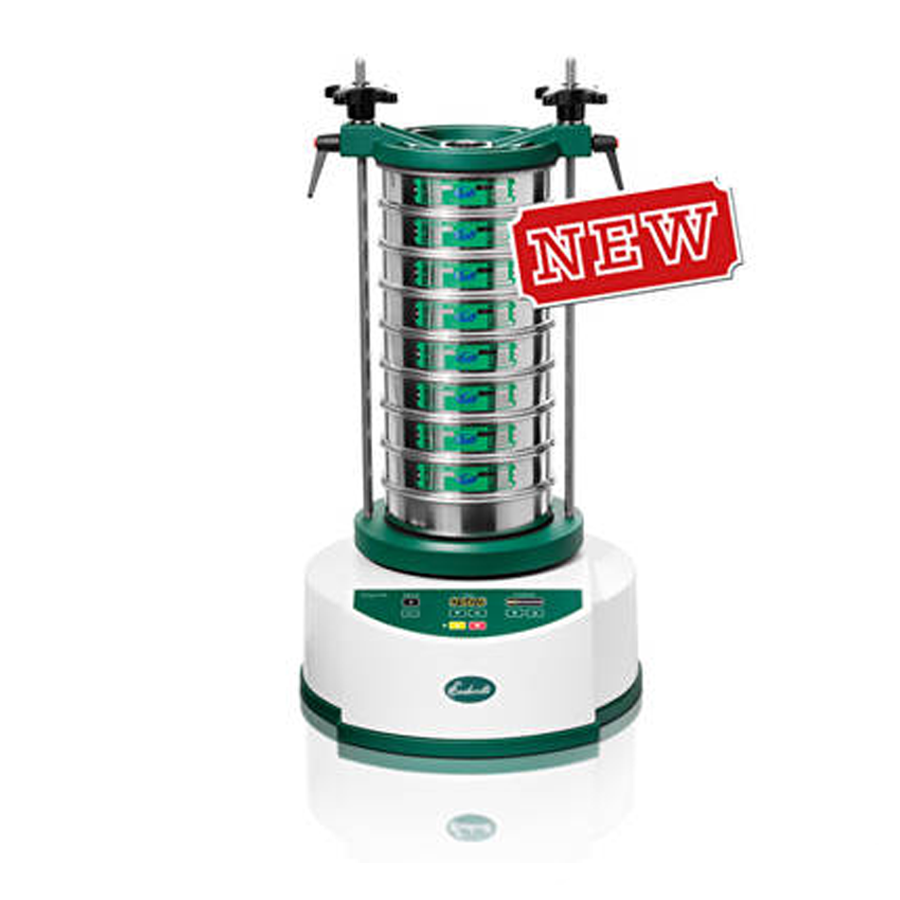

Sieve Shaker OCTAGON 200

  • Range: 20 µm to 125 mm
  • Drive / sieving motion: electromagnetic 3D
  • Amplitude: 0 - 3 mm digital setting in 10 steps
  • Sieve diameter: 100 / 200 mm 8"

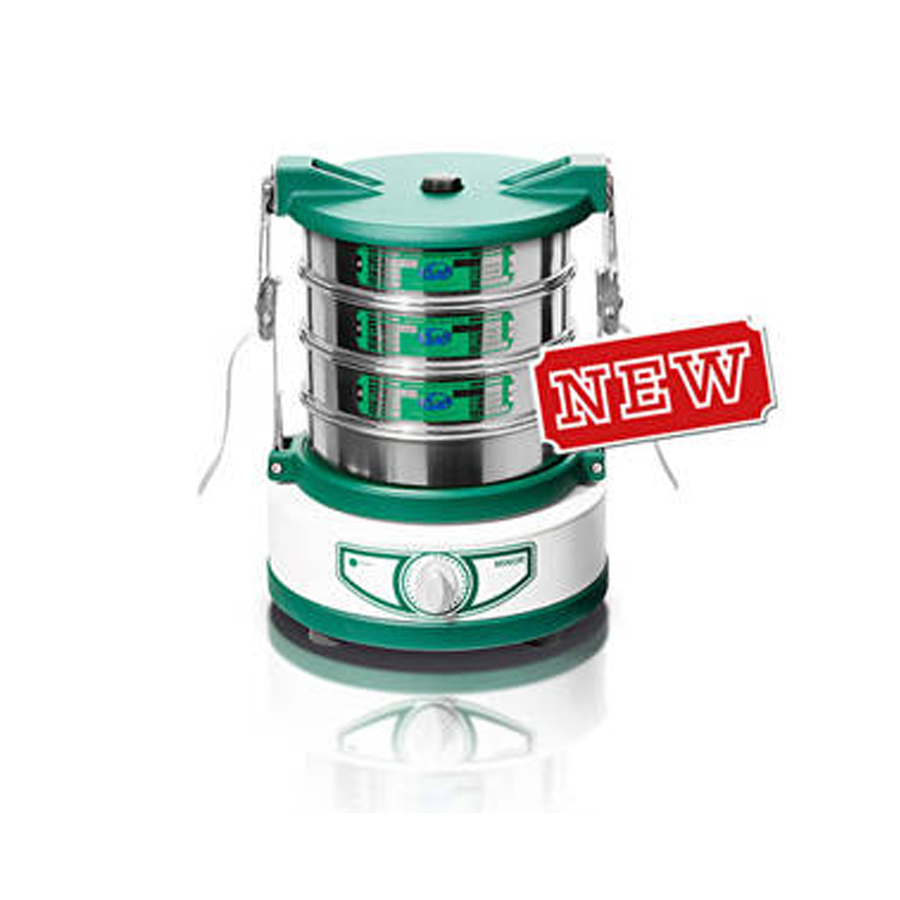

Sieve Shaker MINOR 200

  • Range : 38 µm to 125 mm
  • Drive / sieving motion : electromagnetic
  • Max. batch / feed capacity : 4 kg
  • Max. number of fractions : 8 full height / 16 half height (200 mm sieves)
  • Amplitude : ~ 1.6 mm* fixed
  • Speed : 3,000 min-1 at 50 Hz
  • Sieve diameter : 100 / 200 mm 8"

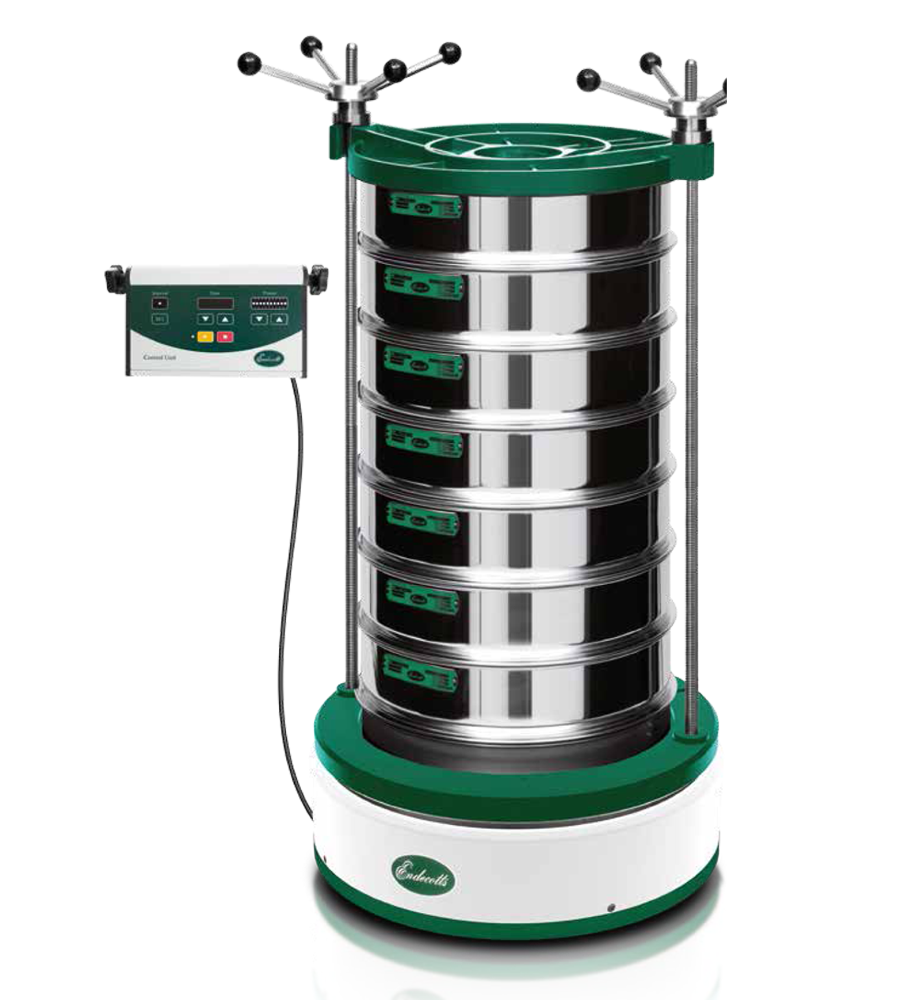

Titan 450

  • Range : 20 µm to 125 mm
  • Drive / sieving motion : electromagnetic 3D
  • Amplitude : 0 - 2 mm digital in 10 steps
  • Sieve diameter : 250 / 300 / 315 / 350 / 400 / 450 mm 12" / 18"
  • Max. batch / feed capacity : 20 kg
  • Max. number of fractions : 7 full height / capacity increases with half height sieves
  • Electrical supply : different voltages available

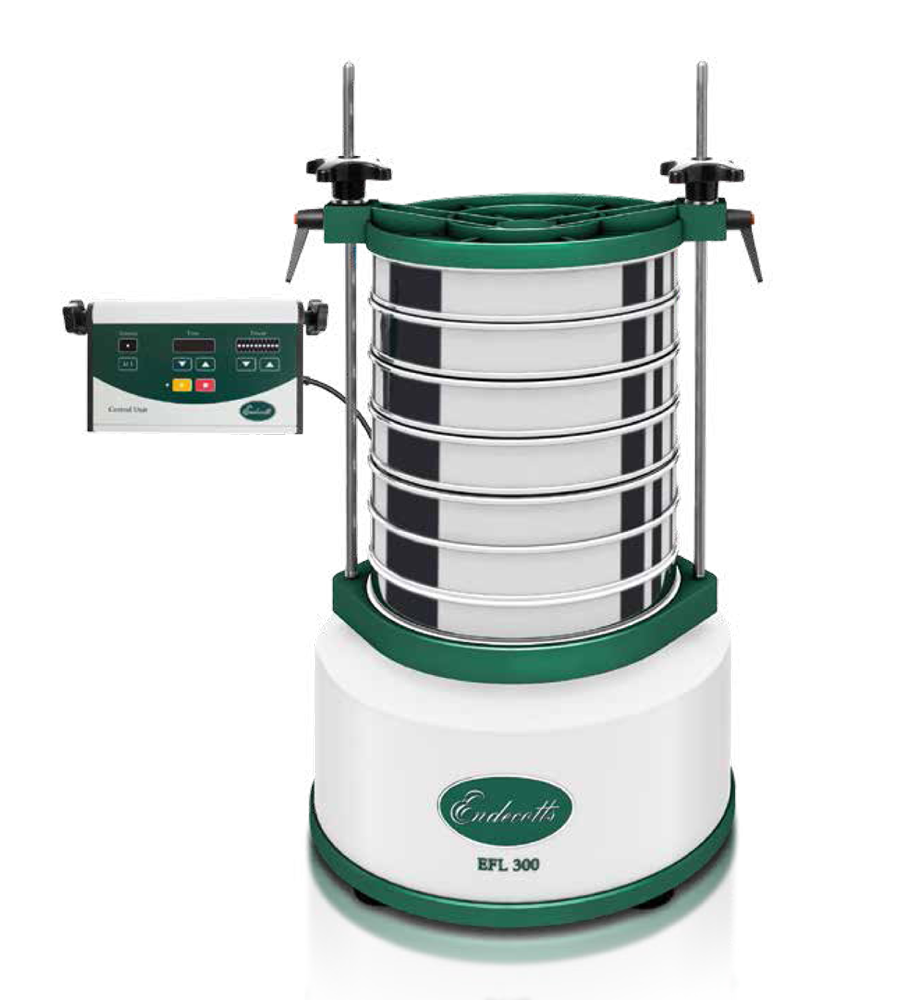

EFL300

  • Range : 20 µm to 125 mm
  • Drive / sieving motion : electromagnetic 3D
  • Amplitude : 0 - 2 mm digital setting in 10 steps
  • Sieve diameter: : 100 / 150 / 200 / 250 / 300 / 315 mm 3" / 8" / 12"
  • Max. batch / feed capacity : 6 kg
  • Max. number of fractions : 6 full height / 12 half height (300 mm sieves)
  • Time display : digital, 0:10 - 99:50 min:sec (external unit)



Sieving Machine AIR SIZER 200

  • Range : 20 µm - 2 mm
  • Drive / sieving motion : dispersion by air jet
  • Speed : 5 - 55 rpm (nozzel speed)
  • Sieve diameter : suitable for 203 mm (8") premium air jet sieves
  • Max. number of fractions : 1
  • Max. mass of sieve stack : 1 (203 mm / 8" sieve)
  • Suitable for dry sieving : yes

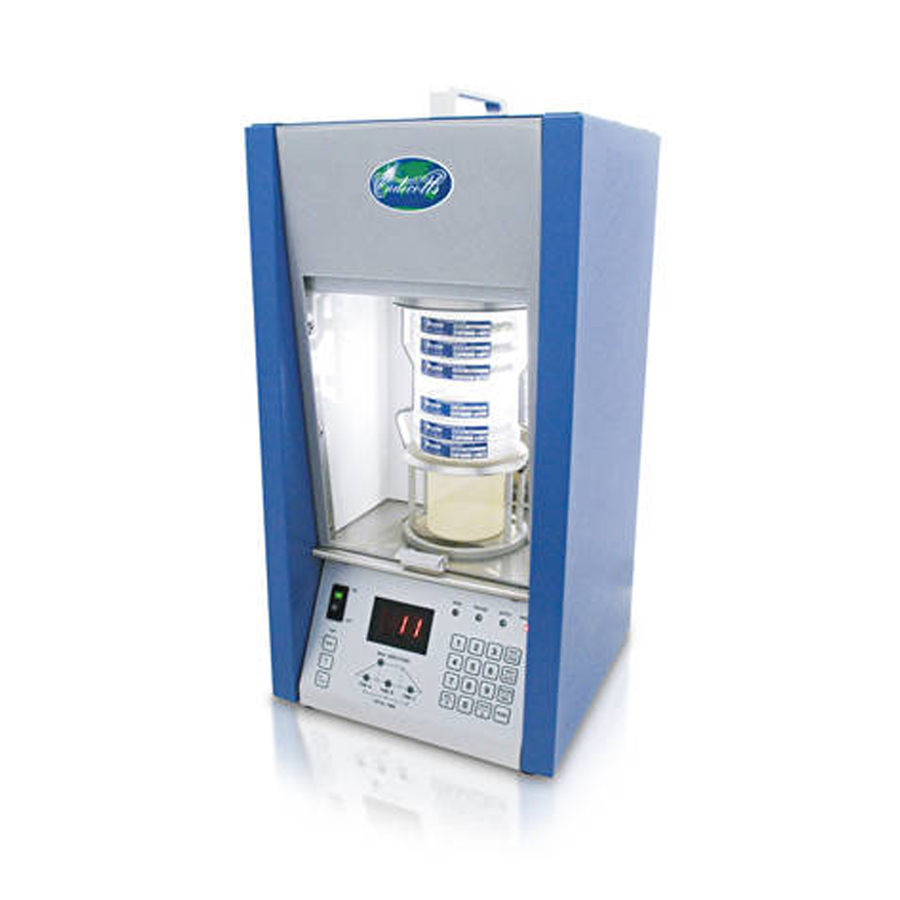

SONIC SIFTER

  • Range : 5 µm - 2 mm
  • Sieving motion : ultrasonic vibrating
  • Max. number of fractions : 1 - 6
  • Speed : 3,000 min-1 at 50/60 Hz
  • Process time : 0 - 119 min
  • Model : benchtop
  • Electrical supply : different voltages available

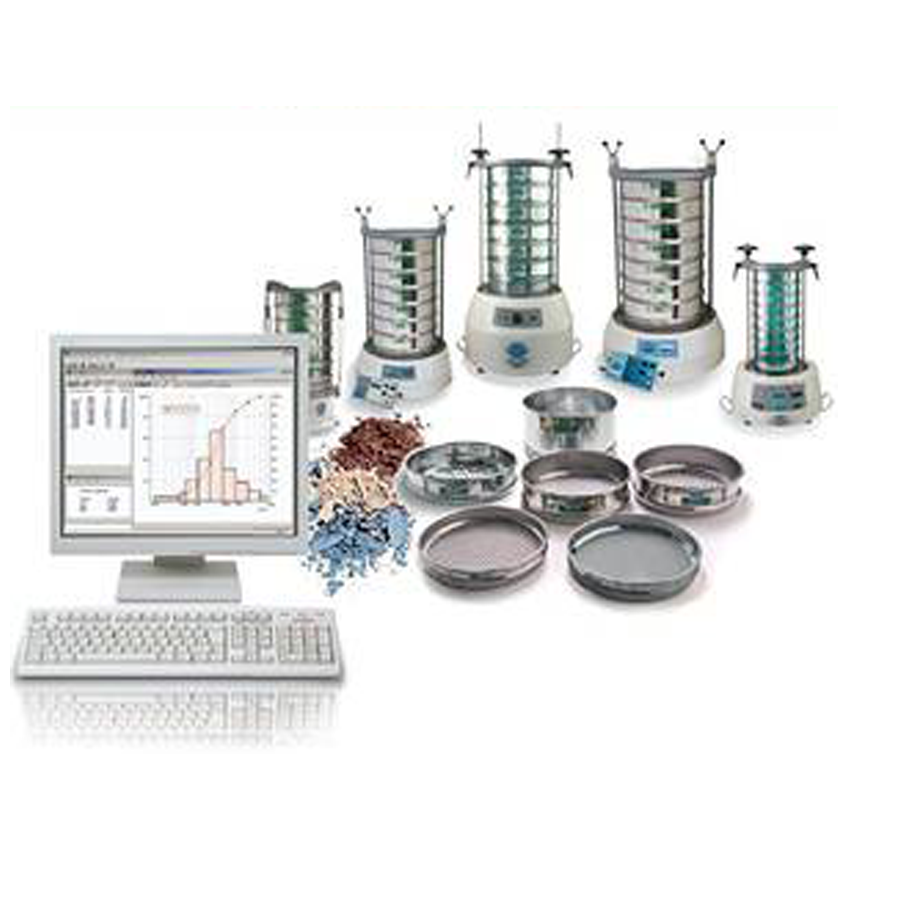

Sieve Software SIEVEWARE

  • Automatic registration, evaluation and administration of measurement data
  • Logical, self-explanatory interface
  • Measurement protocol in accordance with different standards
  • Complex transformation into charts and tables
  • Data link to different measurement instruments
  • Automatic detection and configuration of common analytical scales
  • Comprehensive data export
  • Comprehensive help texts & detailed manual

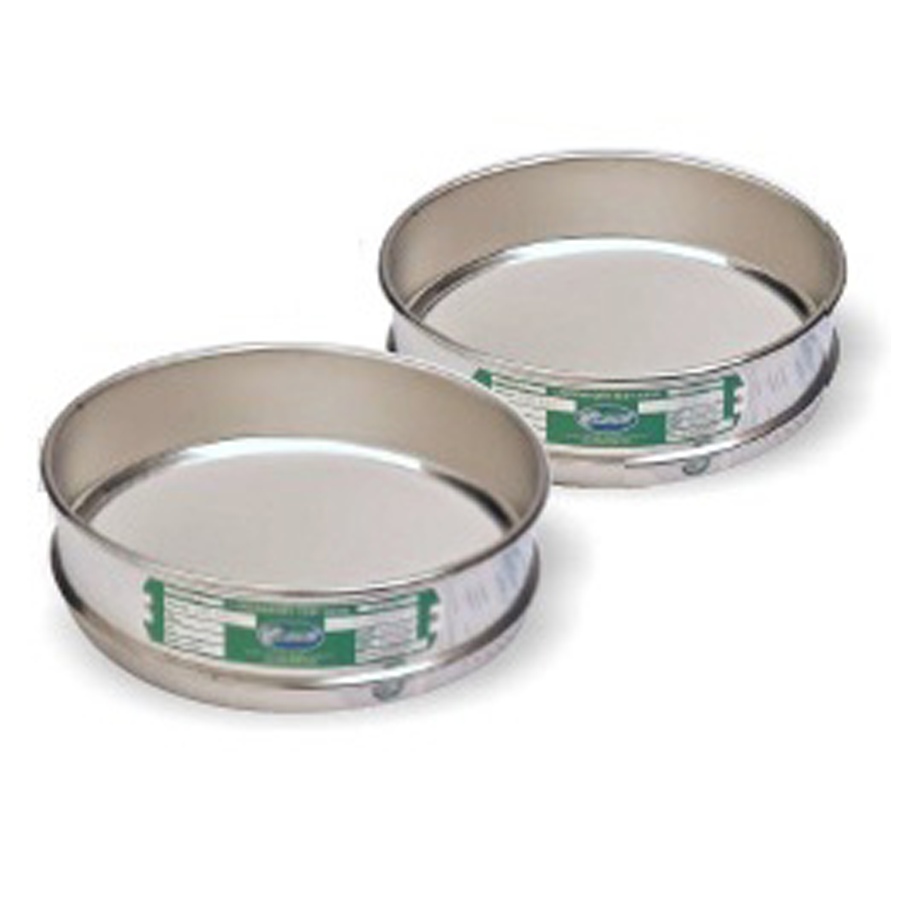

WOVEN WIRE SIEVES

  • Type of mesh : woven wire
  • Diameter : 38 / 100 / 150 / 200 / 250 / 300 / 315 / 350 / 400 / 450 mm 3 / 8 / 12 / 18 inches
  • Mesh sizes : 125 mm - 20 µm
  • Frame material : stainless steel / brass
  • Mesh material : stainless steel
  • Height : full and half height version

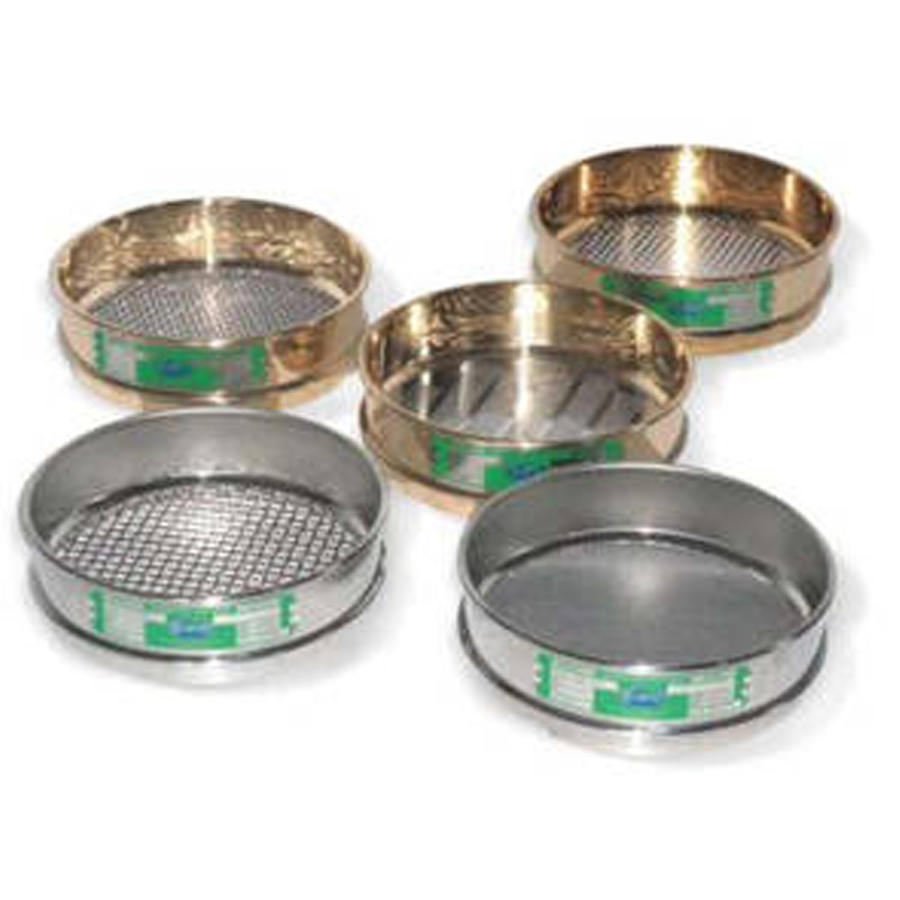

PERFORATED PLATE SIEVES

  • Type of mesh : perforated plate with square or round holes
  • Diameter : 200 / 300 / 315 / 350 / 400 / 450 mm
  • Mesh sizes : 125 - 1 mm round hole and 125 - 4 mm square hole
  • Frame material : stainless steel / brass
  • Mesh material : stainless steel
  • Height : full and half height version

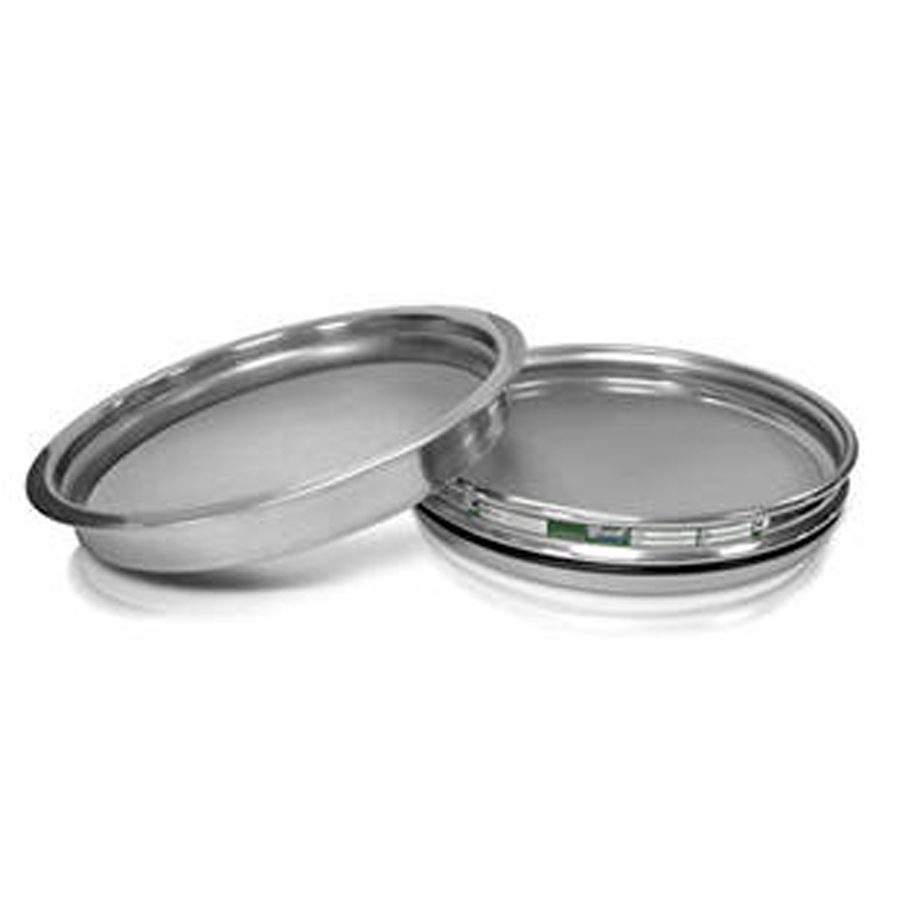

AIR JET SIEVES

  • Type of mesh : woven wire
  • Diameter : 200 mm / 8 inches
  • Mesh sizes : 125 mm - 20 µm
  • Frame material : stainless steel
  • Mesh material : stainless steel
  • Height : full and half height version

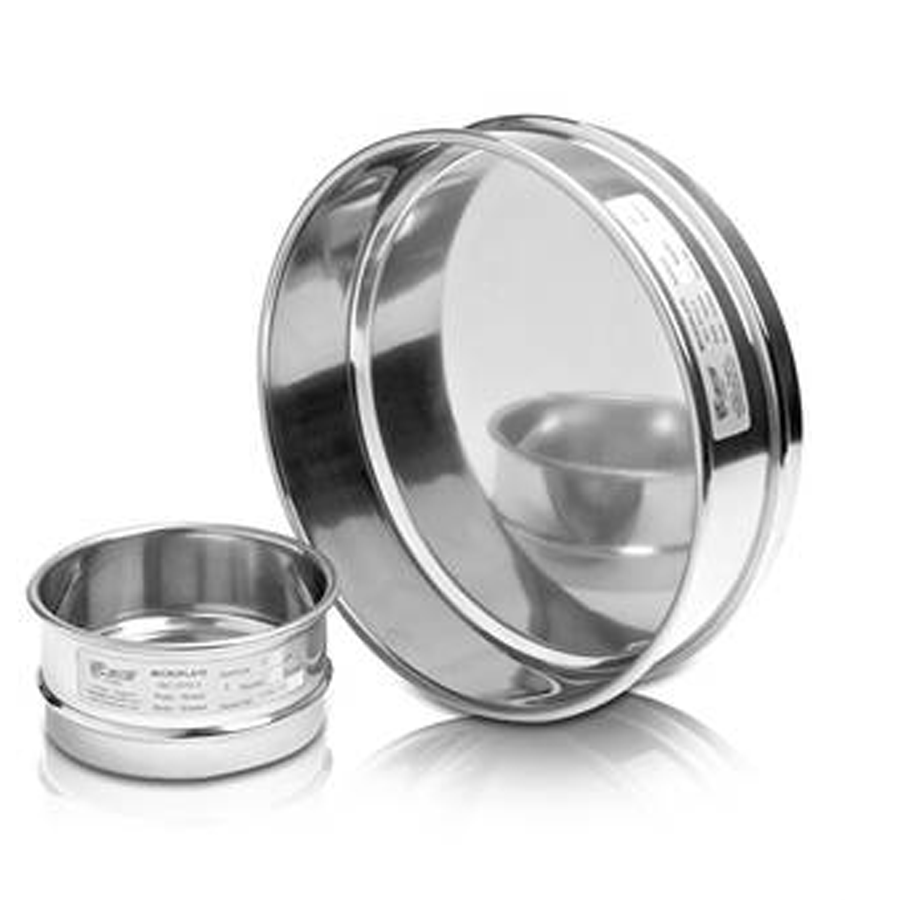

MICROPLATE SIEVES

  • Type of mesh : microplate
  • Diameter : 100 / 200 mm 3 / 8 inches
  • Mesh sizes : 200 µm - 5 µm
  • Frame material : stainless steel
  • Mesh material : electro-formed nickel plate
  • Height : full and half height version

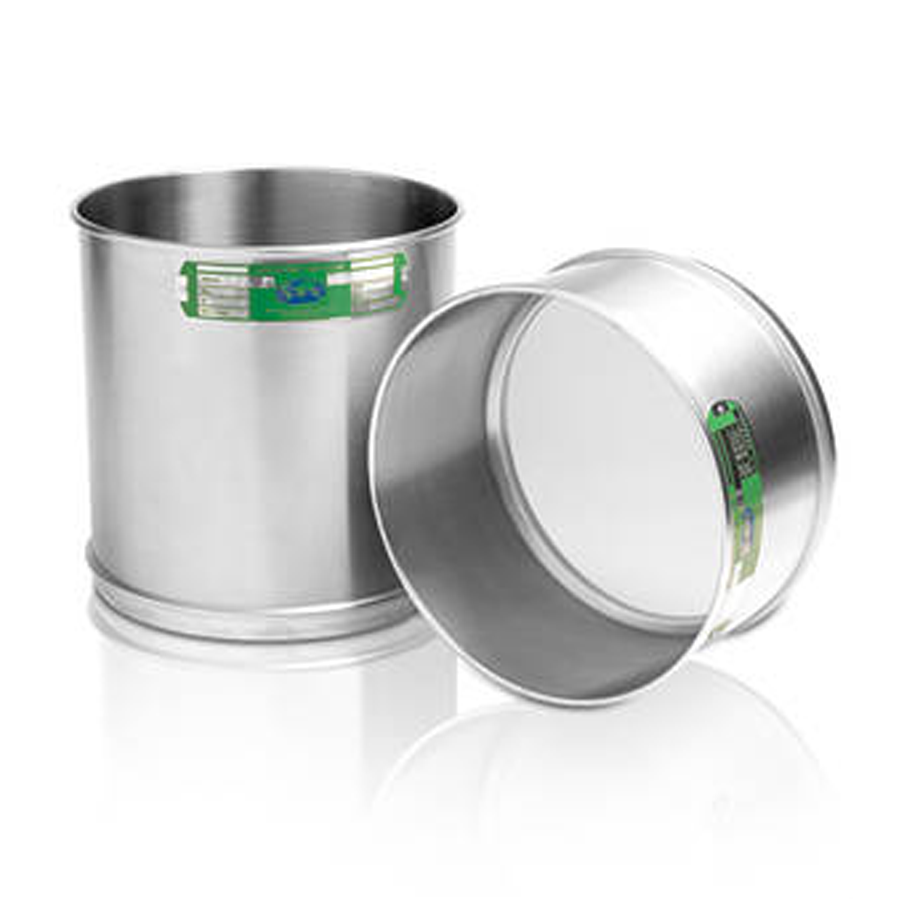

WET WASHING SIEVES

  • Type of mesh : woven wire
  • Diameter : 200 mm / 8 inches
  • Mesh sizes : 125 mm - 20 µm
  • Frame material : stainless steel / brass
  • Mesh material : stainless steel
  • Height : 100 / 200 mm 4 / 8 inches

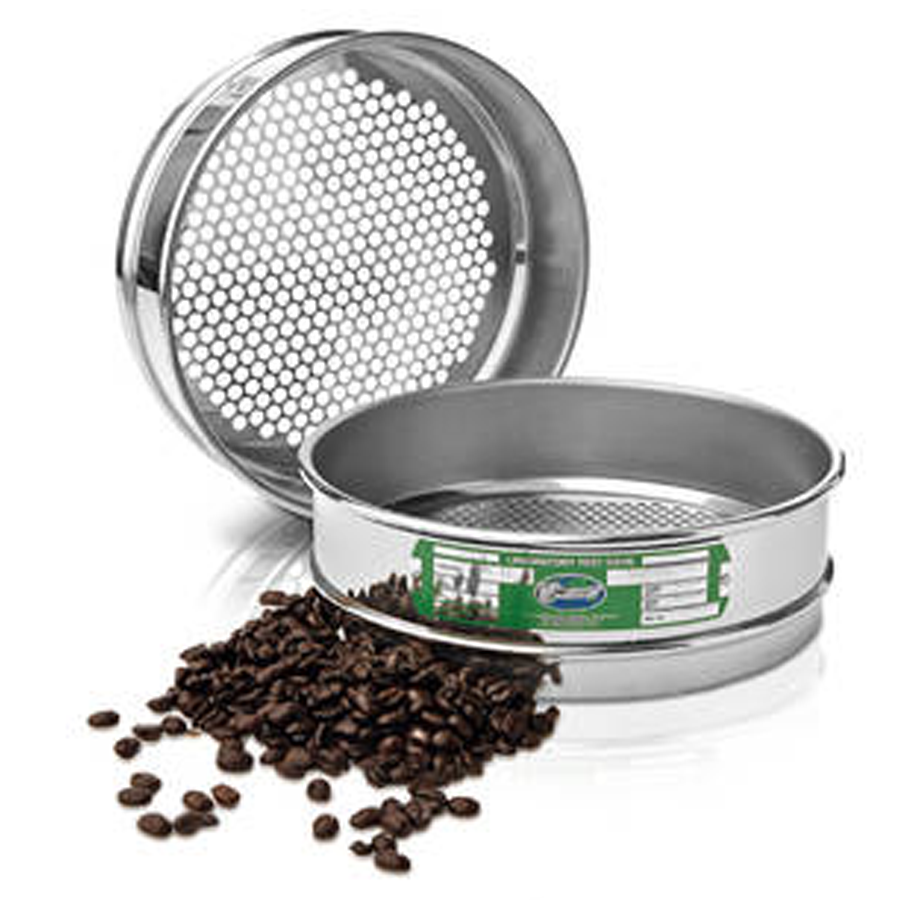

COFFEE SIEVES

  • Type of mesh : round hole perforated plate
  • Diameter : 200 mm 8 inches
  • Mesh sizes : 3 - 40/64 ths
  • Frame material : stainless steel / brass
  • Mesh material : stainless steel
  • Height : 50 / 25 mm

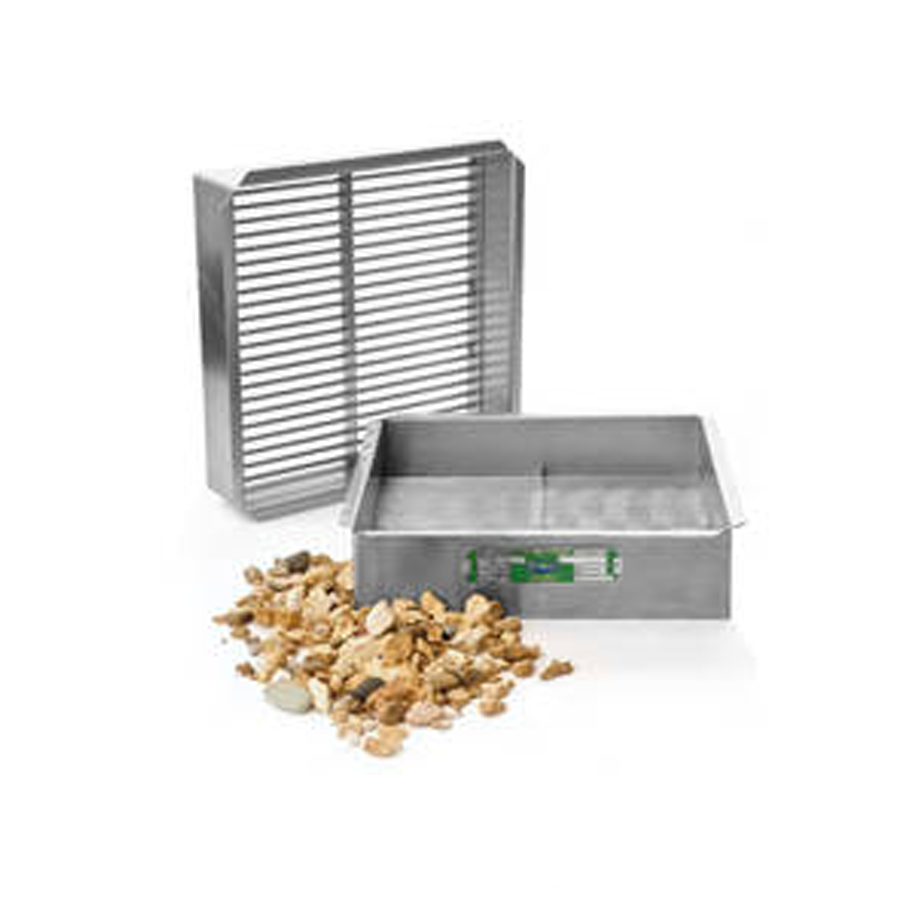

GRID SIEVES

  • Type of mesh : bar
  • Diameter : 300 mm square
  • Mesh sizes : 50 mm - 2.5 mm
  • Frame material : stainless steel
  • Mesh material : stainless steel
  • Height : 75 mm

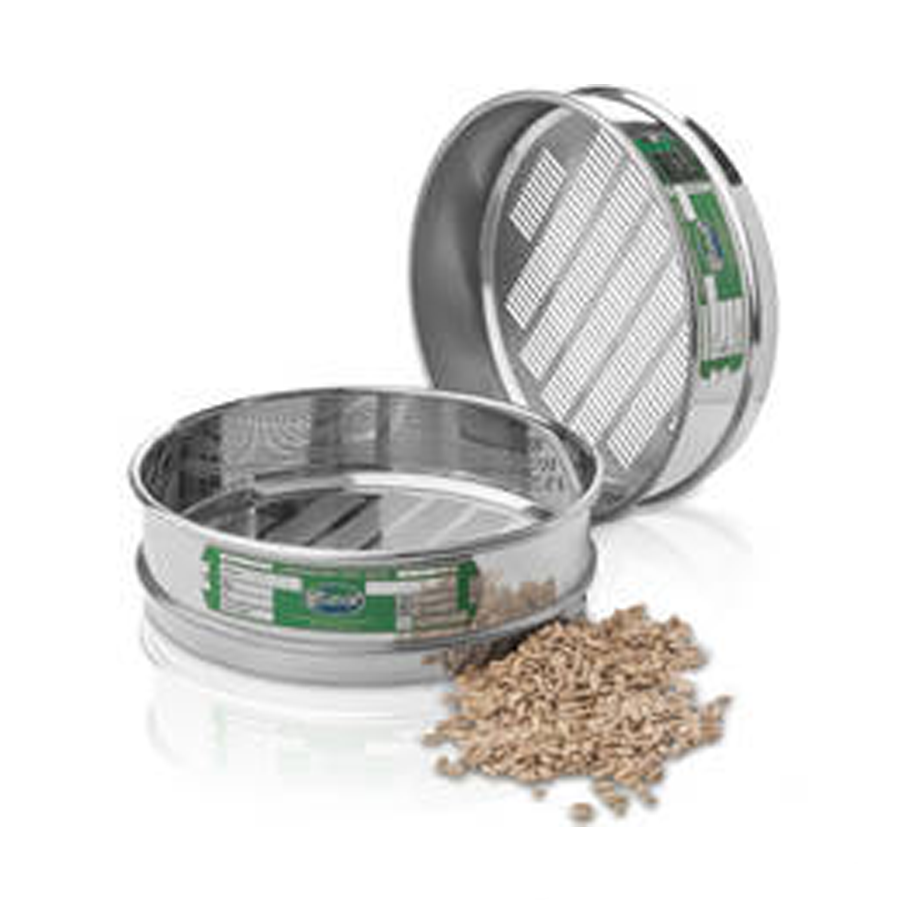

GRAIN SIEVES

  • Type of mesh : perforated plate with slotted holes
  • Diameter : 200 mm
  • Mesh sizes : 1.00 mm - 3.55 mm
  • Frame material : stainless steel
  • Mesh material : stainless steel
  • Height : full and half height version

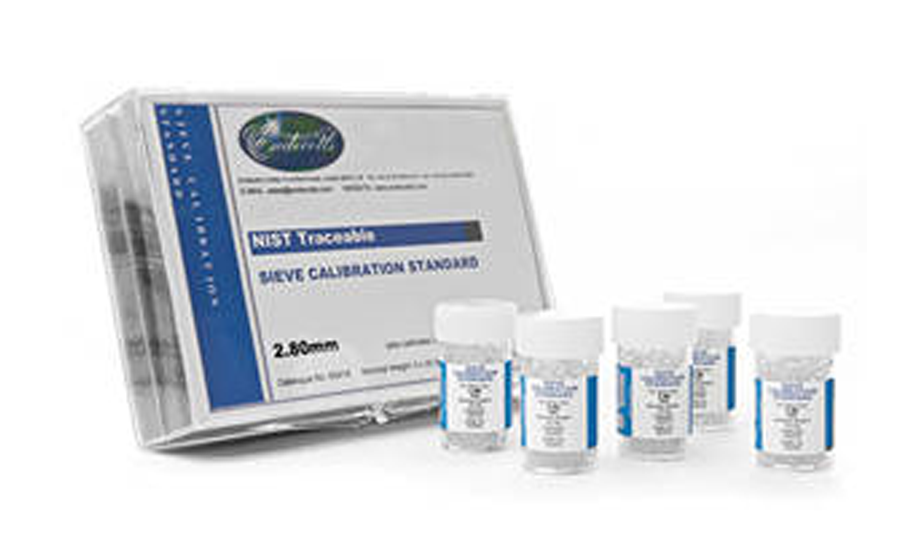

CALIBRATION SAMPLES

  • reliable calibration of individual sieves
  • one of the most accurate calibration methods

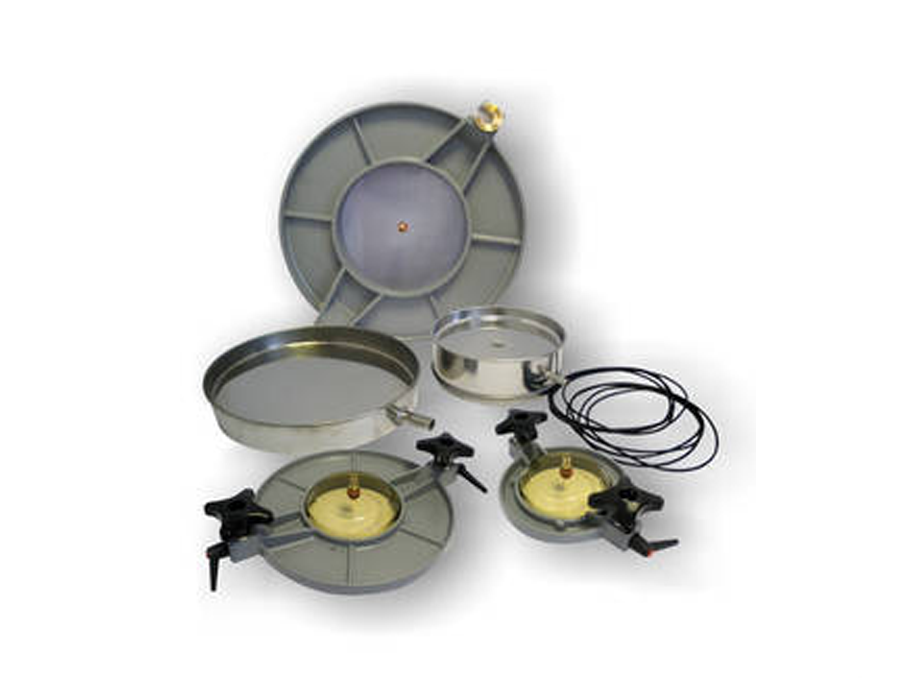

SIEVE ACCESSORIES

  • Wet sieving conversion kits
  • Sieve brushes
  • Rubber sieve balls

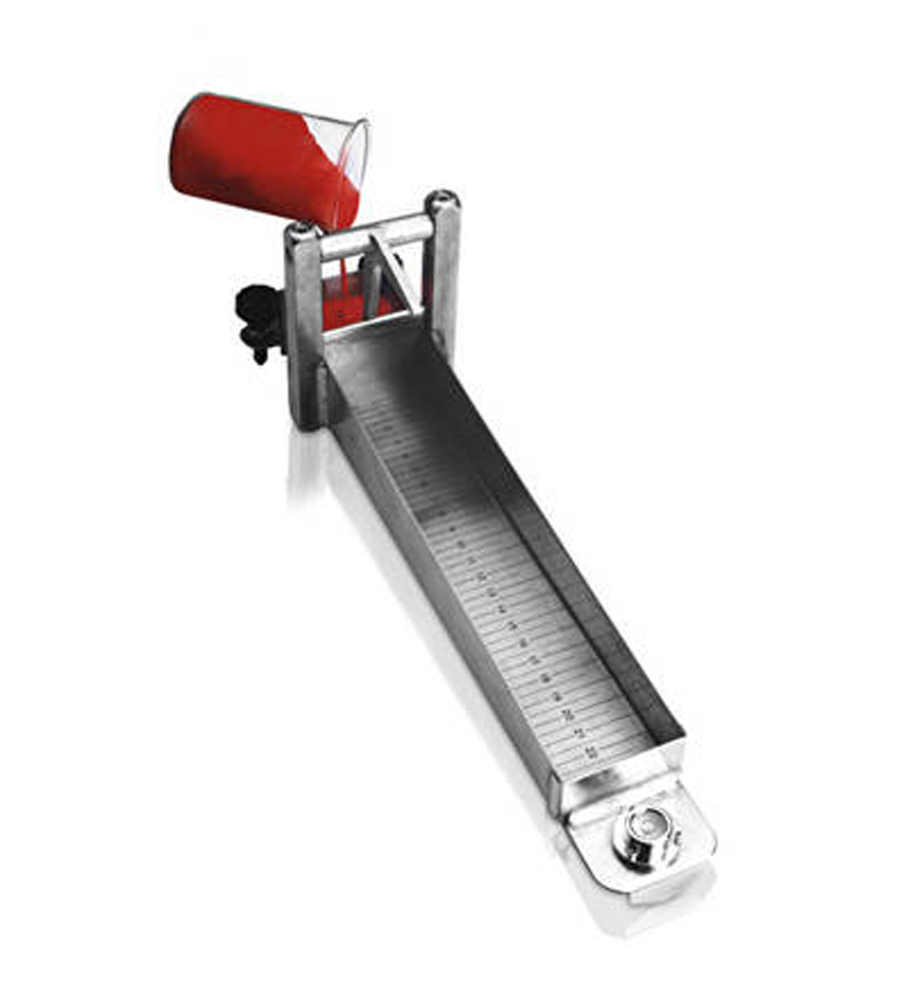

CONSISTOMETER

  • Application : checking laboratory or production samples against consistency, viscosity or flow rate standards
  • Length :
    standard version: 355 mm
    extended version: 414 mm
  • Trough length :
    standard version: 240 mm
    extended version: 354 mm
  • Width :
    standard version: 88 mm
    extended version: 88 mm
  • Height :
    standard version: 104 mm
    extended version: 104 mm
